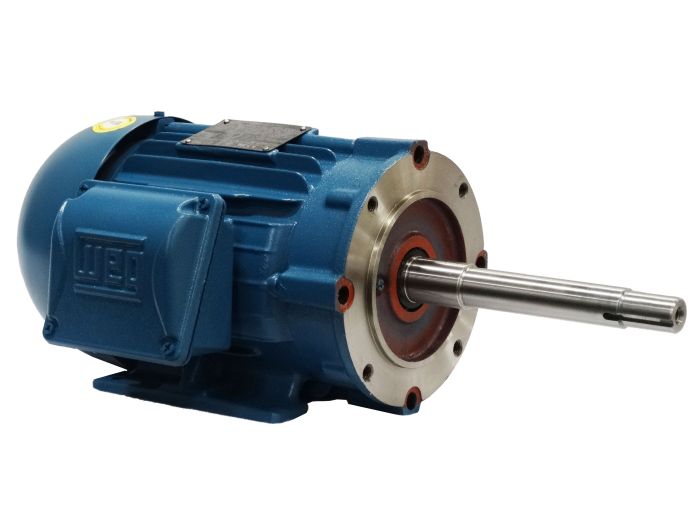

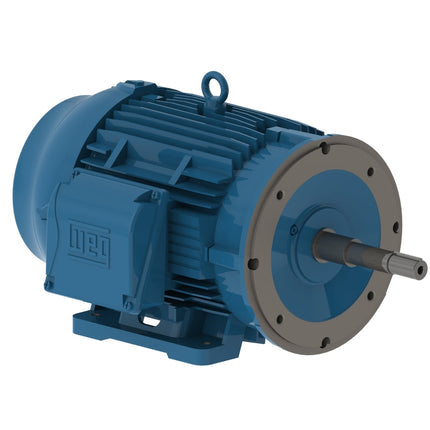

Weg 00536ET3E184JP-W22 W22 Motor, 5 HP, 3500 RPM, TEFC, 182/4JP, 3 PH, 208-230/460V

Product Description

The WEG 00536ET3E184JP-W22 W22 motor is an industrial-grade motor offering optimal performance and long service life. These motors are known for their reliable performance in various plants around the world. The W22 series features cast iron construction, an inverter duty rating, and a 1.25 service factor (up to 100 hp) as standard for extended life.

• Industrial-grade motor with cast iron construction
• Features an inverter duty rating and a 1.25 service factor (up to 100 hp)
• Optimized ventilation systems for cooler operation

Product Highlights

This WEG motor is designed for reliable performance in demanding industrial applications. It features a TEFC enclosure for protection in dirty or outdoor environments.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00536ET3E184JP-W22

Technical Specifications

• Brand Name: WEG
• Frame: 182/4JP
• Voltage: 208-230/460 V
• FLA @ 230V: 11.8 A
• Phase: Three-Phase
• Power: 5 HP
• Base RPM: 3600 RPM
• Enclosure: TEFC
• Enclosure Rating: IP55
• Construction: Cast Iron
• Manufacturer Part Number: 00536ET3E184JP-W22
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Type: General Purpose
• Horsepower: 5 hp
• Speed: 3,600 RPM
• RPM: 3,600 RPM
• Frequency: 60 Hz
• NEMA Frame: 184JP
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Mounting: Foot Mount
• Current Rating: 5.9 A
• Service Factor: 1.25
• Composition: Cast Iron
• Application: Closed Coupled
• Output HP: 5
• Output KW: 3.7
• Frame Size NEMA: 182/4JP
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Output: 5 HP
• Poles: 2
• Torque: 7. 40 lb. ft
• Full Load Amps: 13. 1-11. 8/5. 90 A
• Efficiency (100%): 88. 5
• Power factor (100%): 0. 89
• Insulation: F
• Noise: 69 dB(A)
• No load current: 4. 40/2. 20 A
• Locked rotor current (II/In): 7. 5
