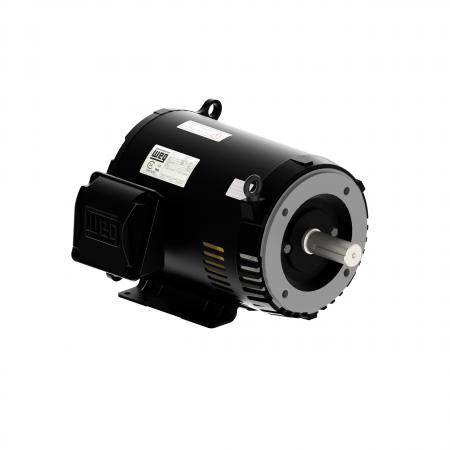

WEG 00518OT3E184T-SG MOTOR 5HP 4P 182/4T WCA2

Product Description

WEG Electric Corp presents the model 00518OT3E184T-SG, a powerful motor designed for various HVAC applications. It operates at five horsepower and features a continuous-duty design suitable for air handling tasks. This unit provides reliability and efficiency in performance due to its robust construction.

• 5 horsepower output
• Open drip-proof enclosure
• Compatible with 208/230/460 VAC systems

Product Highlights

Engineered for HVAC tasks, this motor excels in air handling applications.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Model: 00518OT3E184T-SG

Technical Specifications

• Horsepower: 5 hp
• Amperage Rating: 14 to 12.7/6.33 A
• Speed: 1800 rpm
• Frequency Rating: 60 Hz
• Frame: 182/4T
• Enclosure Type: Open Drip-Proof
• Material: Rolled Steel
• Torque Rating: 14.7 ft-lb
• Insulation Class: Class F
• Rotation: CW/CCW
• Service Factor: 1.15
• Temperature Rating: -20 to 40 deg C
• Mounting Type: C-Face Footed
• Phase: 3 ph
