Weg 00518ET3P184JM-W22 5HP 1750RPM 182/4JM TEFC 200VAC 3PH Pump Motor REPLACEMENT: 00518EP3P184JM-W22

Product Description

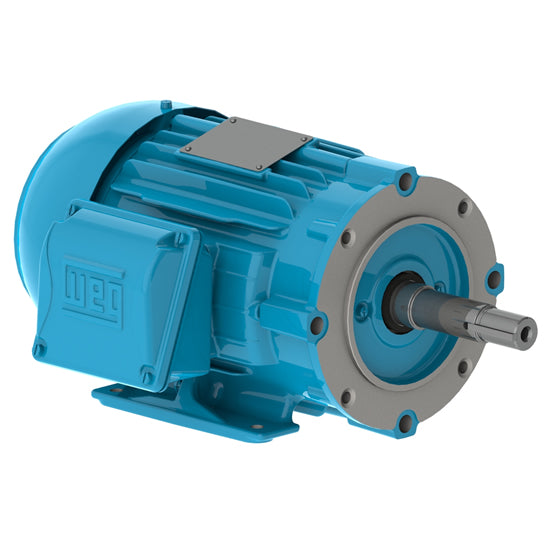

The WEG 00518ET3P184JM-W22 is a 5HP Three Phase JM Pump Motor designed for high performance and maximum energy efficiency. This 1750 RPM motor features an improved cooling system and solid feet for cooler operation, reduced vibration, and noise, extending the motor's life. It is ideal for closed-coupled applications and industrial pumping sets.

• Inverter Rated 1000:1 VT
• NEMA Premium efficiency rating
• Durable cast iron frame

Product Highlights

This WEG motor is a 5HP, 200V, three-phase motor with a TEFC enclosure and a 182/4JM frame, suitable for various industrial applications, including pumps, fans, and compressors.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00518ET3P184JM-W22
• Country of Origin: US

Technical Specifications

• Brand: WEG
• Application: Closed Coupled
• Output HP: 5
• Output KW: 3.7
• Output RPM: 1750
• Frame Size NEMA: 182/4JM
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 200
• Poles: 4
• Frequency: 60 Hz
• Torque: 14.8 lb.ft
• Full Load Amps: 14.8 A
• Efficiency (100%): 89.5
• Power factor (100%): 0.80
• Insulation: F
• Noise: 56 dB(A)
• No load current: 7.36 A
• Locked rotor current (II/In): 7.5
• Degree of protection: IP55
• Service Factor: 1.25
• Duty: Continuous (S1)
• Design: B
• Replaces: 00518EP3P184JM-W22
