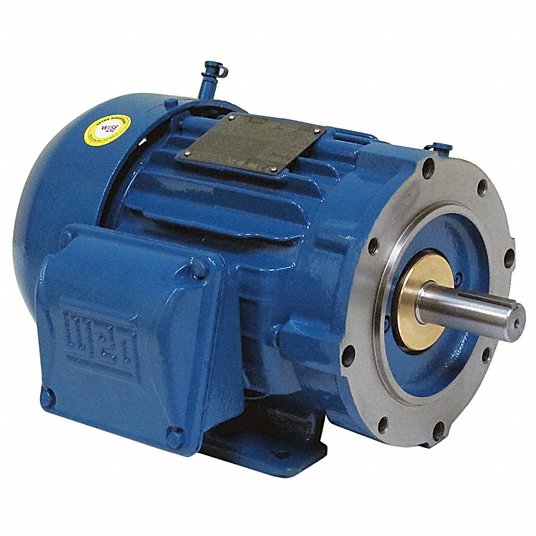

WEG 00518ET3H184TC-W22 MOTOR 5HP 4P 182/4TC WFF2

Product Description

WEG Electric Corp offers the 00518ET3H184TC-W22 motor for various applications. This motor has a power rating of five horsepower and operates on three-phase electricity at 575 VAC. It features a totally enclosed fan-cooled enclosure, ensuring durability and reliable performance in diverse environments.

• Five horsepower output with a 5.16 amp rating
• Totally enclosed fan-cooled design for efficient cooling
• Standard C-Face footed mounting type

Product Highlights

This motor is designed for general purpose applications and offers a service factor of 1.25, making it suitable for continuous-duty operation.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp

Technical Specifications

• Horsepower: 5 hp
• Amperage Rating: 5.16 A
• Frequency Rating: 60 Hz
• Enclosure Type: Totally Enclosed Fan Cooled
• Phase: 3 ph
• Speed: 1755 rpm
• Dimensions: 15.86 in L
• Shaft Size: 1-1/8 in Dia x 2-3/4 in L
• Rotation: CW/CCW
• Service Factor: 1.25
• Material: Cast Iron
• Frame: 182/4TC
• Constant Torque Speed Range: 20:1
• Number of Speeds: 1
• Bearing Type: Ball
• Insulation Class: Class F
• Mounting Type: C-Face Footed
