Weg 00518ET3E184JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 5 HP 182/4JP

Product Description

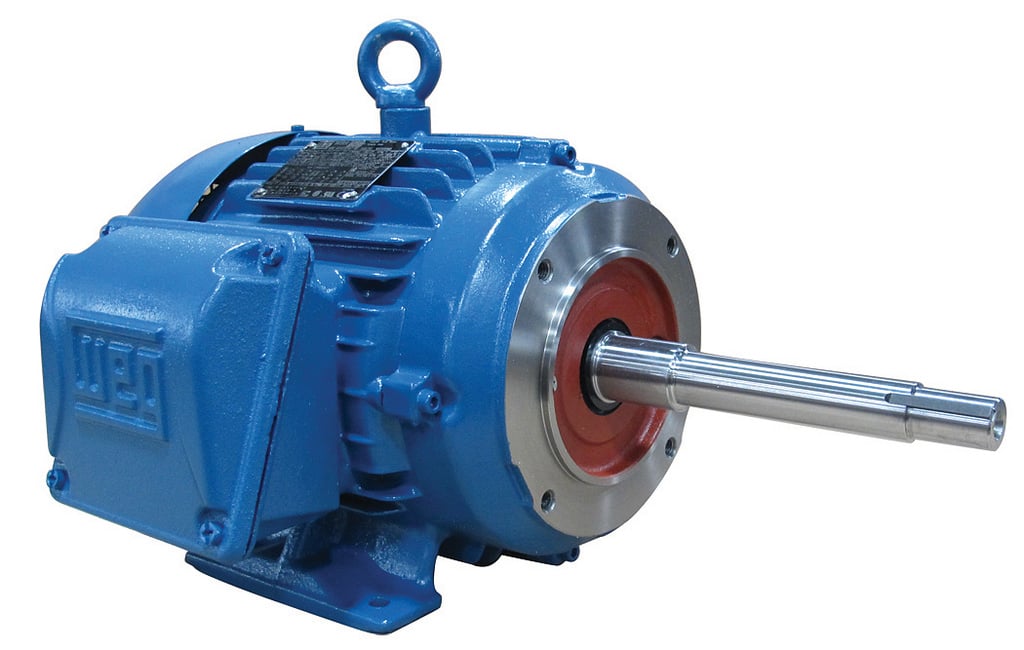

The WEG 00518ET3E184JP-W22 is a 5 HP three-phase motor with a 182/4JP close-coupled pump frame. This W22 NEMA premium efficiency motor features an IC411 TEFC enclosure. Designed for high performance with maximum energy efficiency, it has an improved cooling system and solid feet for cooler operation and reduced vibration.

• NEMA MG-1 Standard
• Frequency 60//50 Hz
• Voltage 230/460//380 V

Product Highlights

This WEG motor is ideal for pumps, fans, and conveyors, offering durability and energy savings in demanding industrial environments.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00518ET3E184JP-W22

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Voltage: 230/460//380 V
• Number of poles: 4
• Degree of Protection: IP55
• Synchronous speed: 1800 rpm
• Output rating: 5 HP
• Mounting: F-1
• Flange: C
• Terminal box : Left position
• Enclosure: IC411 - TEFC
• Application: Closed Coupled
• Output KW: 3.7
• Output RPM: 1750//1430
• Frame Size NEMA: 182/4JP
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Alternate Part Number: 11535672
• Frame: 182T
• Horsepower: 5 hp
• Motor Type: TEFC
• Phase: Three Phase
• RPM: 1800
• Series: Pump Motor
• All - Voltage: 230/460VAC
• HP: 5
• Frame Remarks: Close Coupled Pump
• Volts: 208/230/460
• Manufacturer: WEG
• Classification: JM-JP & Jet Pump
• Item Condition: Factory New
• Model: 11535672
• Replaces: 00518EP3E184JP-W22
• kW: 3.7
• Frame Size: 112M
• Protection: IP55
• IE Rating: IE2
• Duty: Continuous
