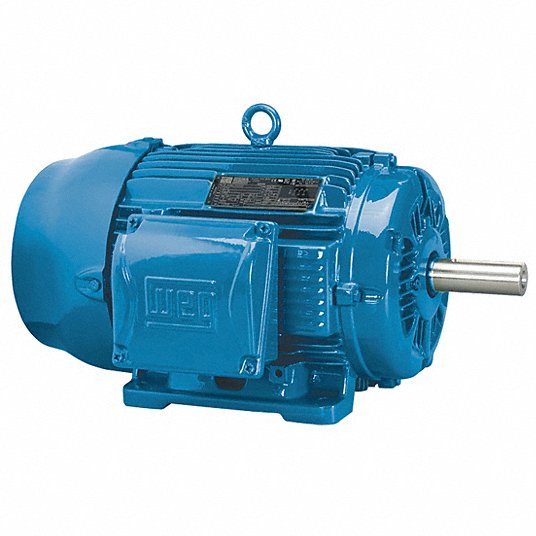

WEG 00512ET3E215T-W22 MOTOR 5HP 6P 213/5T WFF2

Product Description

WEG Electric Corp offers the MOTOR 5HP 6P 213/5T WFF2 with MPN 00512ET3E215T-W22. This AC motor operates at five horsepower with a speed of eleven hundred seventy revolutions per minute. It is designed for continuous-duty applications. The motor operates on 208, 230, or 460 volts AC and features three-phase operation. It is suitable for general purpose applications.

• Totally enclosed fan cooled enclosure
• Cast iron construction, ensuring durability
• Footed mounting and CW/CCW rotation

Product Highlights

This motor is ideal for professional use in various applications that require reliable and efficient performance.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Service Factor: 1.25

Technical Specifications

• Frame: 213/5T
• Phase: 3 ph
• Horsepower: 5 hp
• Amperage Rating: 15.1 to 13.7/6.83 A
• Frequency Rating: 60 Hz
• Dimensions: 19.517 in L
• Shaft Size: 1-3/8 in Dia x 3-3/8 in L
• Bearing Type: Ball
• Enclosure Type: Totally Enclosed Fan Cooled
• Constant Torque Speed Range: 20:1
• Insulation Class: Class F
• Mounting Type: Footed
• Rotation: CW/CCW
• Number of Speeds: 1
