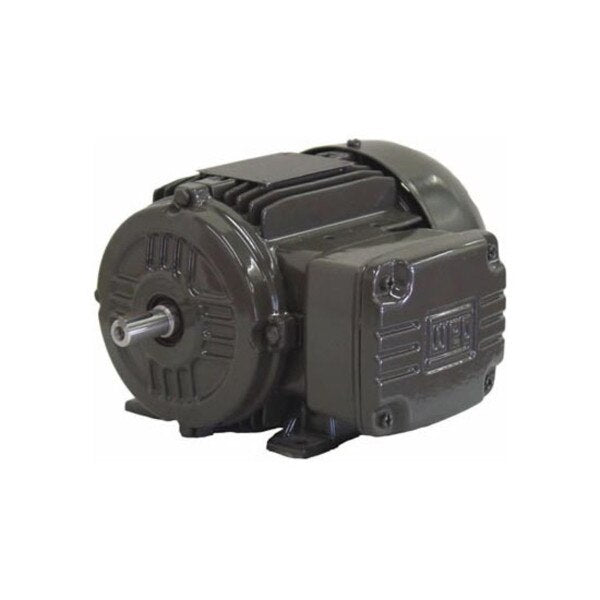

Weg 00418ET3EAL112M-W22 Multimounting IE3 Motor 5.5 HP 4P 112M

Product Description

The WEG 00418ET3EAL112M-W22 provides 4 kW (5.5 HP) of reliable induction power from the IEC metric series. Aluminum frame and removable feet provide great flexibility and facilitate configuration changes without additional machining. Its terminal box can rotate every 90 degrees, allowing motor cable connections on any side.

• Aluminum frame
• Removable feet
• Terminal box can rotate every 90 degrees

Product Highlights

This TEFC motor features NEMA Premium efficiency and multi-voltage capability. It is totally interchangeable with cast iron motors.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00418ET3EAL112M-W22
• Country of Origin: Brazil

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60 Hz
• Voltage: 230/460//380-415 V
• Number of poles: 4
• Degree of Protection: IP55
• Synchronous speed: 1800 rpm
• Output rating: 5.5 HP
• Mounting: B3L(E)
• Flange: Without
• Terminal box : Right position
• Enclosure: IC411 - TEFC
• Phase: Three Phase
• Frame: 112M
• Rated speed: 1755 rpm
• Slip: 2.50 %
• Rated Current: 14.6/7.28 A
• LR Amperes: 116/58.2 A
• LRC: None
• No Load Current: 8.50/4.25 A
• Rated Torque: 16.5 ft.lb
• Locked Rotor Torque: 250 %
• Breakdown Torque: 350 %
• Insulation Class: F
• Service Factor: 1.25
• Moment of Inertia: 0.4312 sq.ft.lb
• Design: N
• Locked Rotor Time: 34s (cold) 19s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Rotation Direction: Both
• Noise Level: 56.0 dB(A)
• Starting Method: Direct
• Enclosure Material: Aluminum
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6207
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6206
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 12:1
• Output KW: 4.0
• Output RPM: 1755
• Mount NEMA: With Base
• Mount IEC: B3L(E)
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• Alternate Part Number: 13983169
• Warranty: 18 Months
• Series: IEC Tru-Metric Series
• Weight: 88
