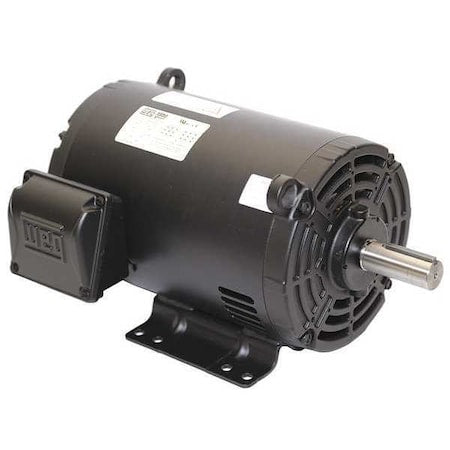

Weg 00336OT3E145T-S 3-Phase General Purpose Motor 3 HP 143/5T Frame

Product Description

The WEG 00336OT3E145T-S is a 3-Phase General Purpose Motor with a motor design of 3-Phase and 3 HP. This motor is designed for environments where dirt and moisture are minimal. It has a nameplate RPM of 3,480 and operates at 230/460V AC. It is widely used in applications such as compressors, pumps, and chillers.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• Motor frame painting system 500 hours salt spray resistant

Product Highlights

This motor meets or exceeds the efficiency levels determined by International Standards. It has a rolled steel frame and a 143/5T Frame.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00336OT3E145T-S
• Country of Origin: Multiple

Technical Specifications

• HP: 3
• Hz: 60
• Duty Cycle: Continuous
• Item: General Purpose Motor
• Frame: 143/5T
• Phase: Three
• Voltage: 230/460V AC
• RPM Group: 3001-3600
• RPM Range: 3,001-3,600
• Standards: CSA (70014057), UL (E104590
• Ins. Class: F
• Shaft Dia.: 7/8 in
• NEMA Design: None
• Motor Design: 3-Phase
• Shaft Length: 2 1/4 in
• Nameplate RPM: 3,480
• No. of Speeds: 1
• Usable @ 208V: Yes
• Frame Material: Rolled steel
• Full Load Amps: 7.2/3.6
• Inverter Rated: Yes
• Motor Bearings: Ball
• Overall Length: 12 3/8 in
• Length Less Shaft: 10 1/8 in
• Motor Application: General Application
• Capacitor Required: No
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Design: Keyed
• Nominal Efficiency: 85.5 %
• Motor Mounting Type: Rigid Base
• Motor Service Factor: 1.15
• Motor Shaft Rotation: CW/CCW
• Motor Efficiency Group: NEMA Premium Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Position: Horizontal
• Motor Thermal Protection: None
• Green Environmental Attribute: Does not Contain Formaldehyde
• Green Certification or Other Recognition: NEMA Premium Rated
• Application: General Purpose
• Output KW: 2.2
• Output RPM: 3480
• Frame Size NEMA: 143/5T
• Mount NEMA: With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP21
• Motor Phase: 3 ph
• Synchronous Rpm: 3600 rpm
• Motor Supply Voltage: 190/380//208-230/460 V
• Frequency Rating: 50/60 Hz
• Duty Condition Type: Continuous Duty
• Mounting Type: Footed
• Full Load Current: 3.59 A
• Full Load Efficiency: 85.50 %
• Volts @ Frequency: 190 V @ 50 Hz; 380 V @ 50 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Description Keyword: 3 hp
• Overall Length C Dimension: 12.36 in
• Insulation Class: F
• IP Rating: 23
• Standards Met: UL, CSA, CE
• Motor Category: General Purpose Motor
• Product Type: General Purpose Motors
• Torque Rating: 4.47 ft-lb
• Material: Rolled Steel
• Shaft Size: 7/8 in Dia x 2-1/4 in L
• Temperature Rating: -20 to 40 deg C
• Speed: 3480 rpm
• Primary brand: WEG
• Order code / Manufacturer SKU: 00336OT3E145T-S
• Manufacturer description: ODP - ROLLED STEEL - NEMA PREMIUM EFFICIENCY - MOTOR 3HP 2P 143/5T WCA2 ROLLED STEEL IH
