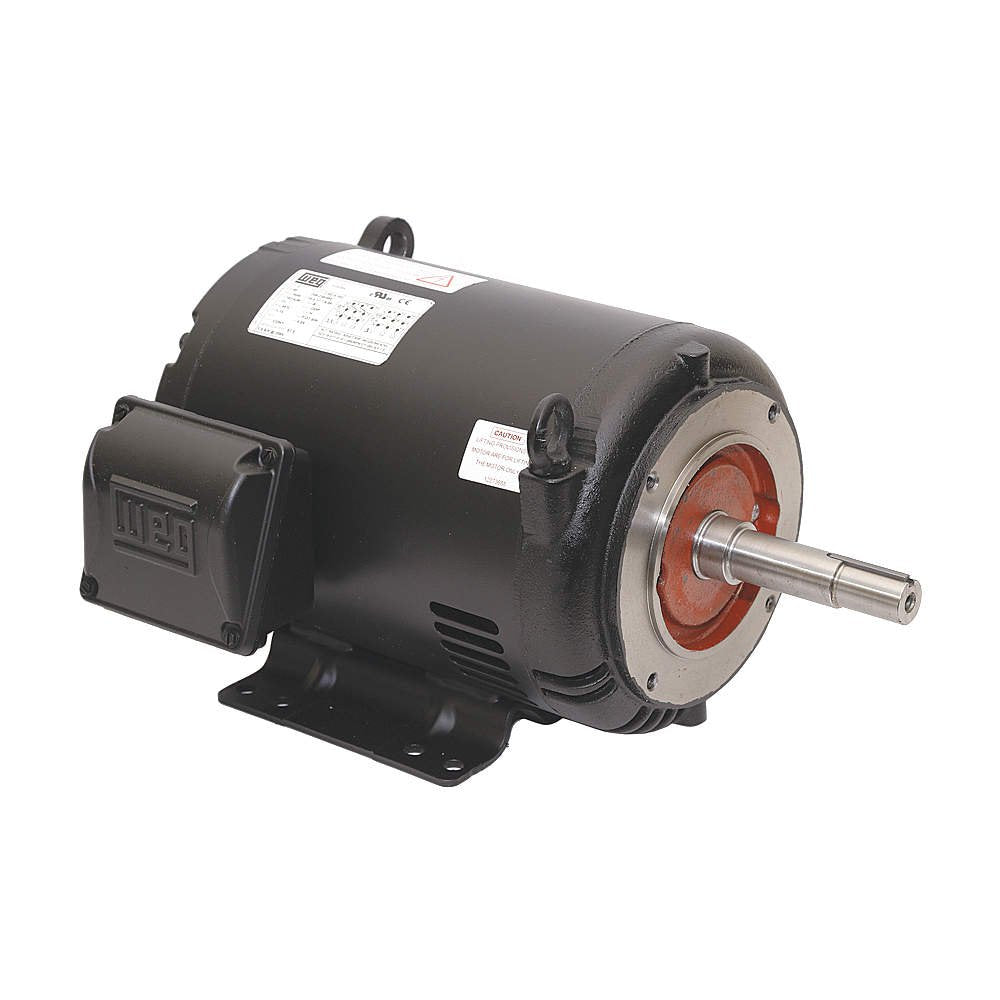

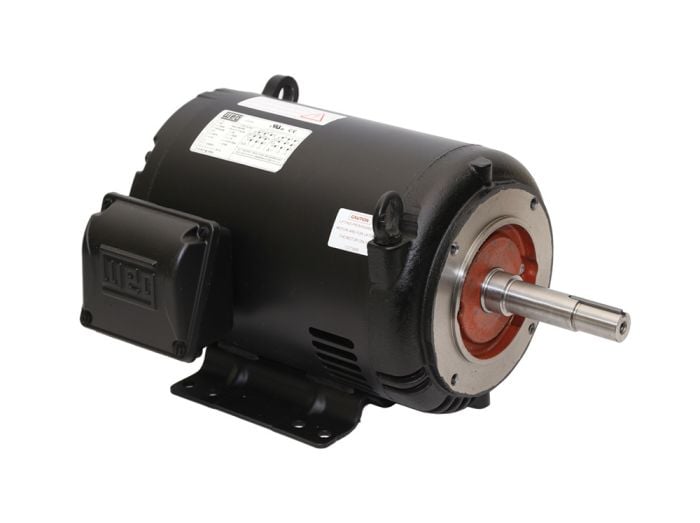

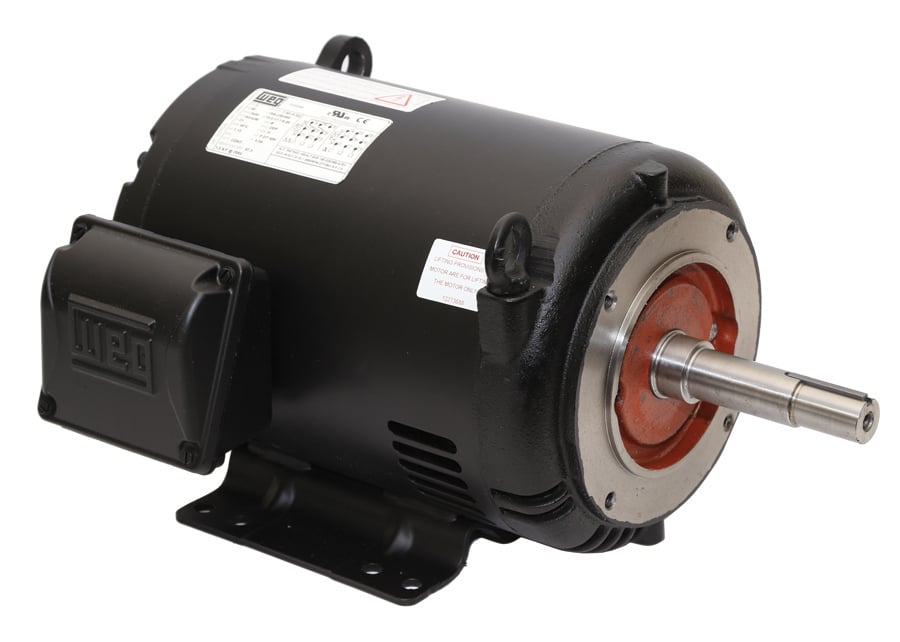

Weg 00336OT3E145JM-S JM Type ODP NEMA Premium Efficiency Close Coupled Electric Pump Motor, 3 HP, 143/5JM

Product Description

The WEG 00336OT3E145JM-S is an electric pump motor designed for industrial power distribution and automation. This 3 HP, 3-Phase motor operates at 3480 rpm with a voltage of 208-230/460 V and 60 Hz frequency. It features NEMA premium efficiency and an ODP (Open Drip Proof) enclosure, suitable for environments with minimal dirt and moisture.

• Current Rating 7.94-7.18/3.59 A
• NEMA dimensions
• Service Factor: 1.15

Product Highlights

Premium efficiency motor designed for environments where dirt and moisture are minimal. Suitable for VFD operation as per NEMA MG1 part 31.4.4.2

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00336OT3E145JM-S
• Country of Origin: Brazil

Technical Specifications

• Motor Type: Premium Efficient
• Horsepower: 3 HP
• Phase: 3-Phase
• Speed: 3480 rpm
• Voltage: 208-230/460 V
• Frequency: 60 Hz
• Frame Size: 143/5JM
• Efficiency: NEMA Premium Efficiency
• Enclosure: ODP (Open Drip Proof)
• Duty Cycle: Continuous
• Ins. Class: F
• RPM Range: 3,001-3,600
• Standards: CSA (LR38324), CSA (LR50962), UL (E104590), UL (E125311)
• Height: 6.75 in
• Body Dia.: 6.6 in
• HP @ 50Hz: 3
• RPM @ 50Hz: 2,825
• Shaft Dia.: 0.875 in
• Shaft Type: JM Threaded
• NEMA Design: B
• Motor Design: 3-Phase
• Shaft Length: 4.114583333 in
• Nameplate RPM: 3,480
• No. of Speeds: 1
• Usable @ 200V: Yes
• Usable @ 208V: Yes
• Frame Material: Rolled steel
• Inverter Rated: Yes
• Motor Bearings: Ball
• Overall Length: 14.4375 in
• Shaft Material: Carbon Steel
• Voltage @ 50Hz: 190/380, 220/415
• Inverter Rating: 1000:1
• Bolt Circle Dia.: 5.875 in
• Length Less Shaft: 10.1875 in
• Motor Application: Pump
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Design: JM Threaded
• Nominal Efficiency: 85.5 %
• Motor Mounting Type: Face/Base
• Conduit Box Location: Exterior
• Conduit Box Position: F1
• Motor Frame Material: Steel
• Motor Service Factor: 1.15
• Motor Shaft Rotation: CW/CCW
• Regreasable Bearings: Regreasable Bearings
• Motor Sub Application: Close-Coupled Pump
• Service Factor @ 50Hz: 1
• Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
• Motor Efficiency Group: NEMA Premium Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Position: Horizontal
• Motor Thermal Protection: None
• Poles: 2
• Torque: 4.47 lb.ft
• Efficiency (100%): 85.5
• Power factor (100%): 0.90
• Noise: 62 dB(A)
• No load current: 2.60/1.30 A
• Locked rotor current (II/In): 8.0
• FL Eff (%): 85.5
• Rated Output: 1 to 25 HP
• Number of Poles: 2 to 6
• Class F insulation (B temperature rise): Frame Sizes: 143/5 to 254/6, JM design
• Rated voltage: 208-230/460 V
• Frequency (dual rated 50 Hz 190-220/380-415V): 60 Hz
• IP21 enclosure: F1 foot mount as standard
• Ambient temperature: -20 °C to +40 °C
• KW: 2.2
• Motor Enclosure Type: ODP - Open Drip Proof
• Motor Frame Size: 143/5JM
• Product Notes: Rolled Steel Frame - Cannot be modified with T Box on opposite side
• Speed (RPM): 3600
• Motor Category: Close Coupled Pump Motor
• Motor Phase: 3 ph
• Motor Horsepower: 3 hp
• Synchronous Rpm: 3600 rpm
• Motor Supply Voltage: 190/380//208-230/460 V
• Enclosure Type: ODP (Open Drip-Proof)
• Frequency Rating: 50/60 Hz
• Duty Condition Type: Continuous Duty
• Full Load Efficiency: 85.50 %
• Volts @ Frequency: 190 V @ 50 Hz; 380 V @ 50 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Standards Met: UL, CSA, CE
• Overall Length C Dimension: 14.49 in
• IP Rating: 23
• Mounting Type: C-Face / Foot Mounted
• Product Type: Pump Motors
• Manufacturer Part Number: 00336OT3E145JM-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Description: 3HP 3600 3 60 208-230/460, J2
• Type: General Purpose
• Nominal Voltage: 208 VAC
• Mounting: Foot Mount
• Current Rating: 3.59 A
• Composition: Steel
• Primary brand: WEG
• Order code / Manufacturer SKU: 00336OT3E145JM-S
• Manufacturer description: CLOSE-COUPLED PUMP - ROLLED STEEL - JM & JP FRAMES - MOTOR 3HP 2P 143/5JM WCA2
