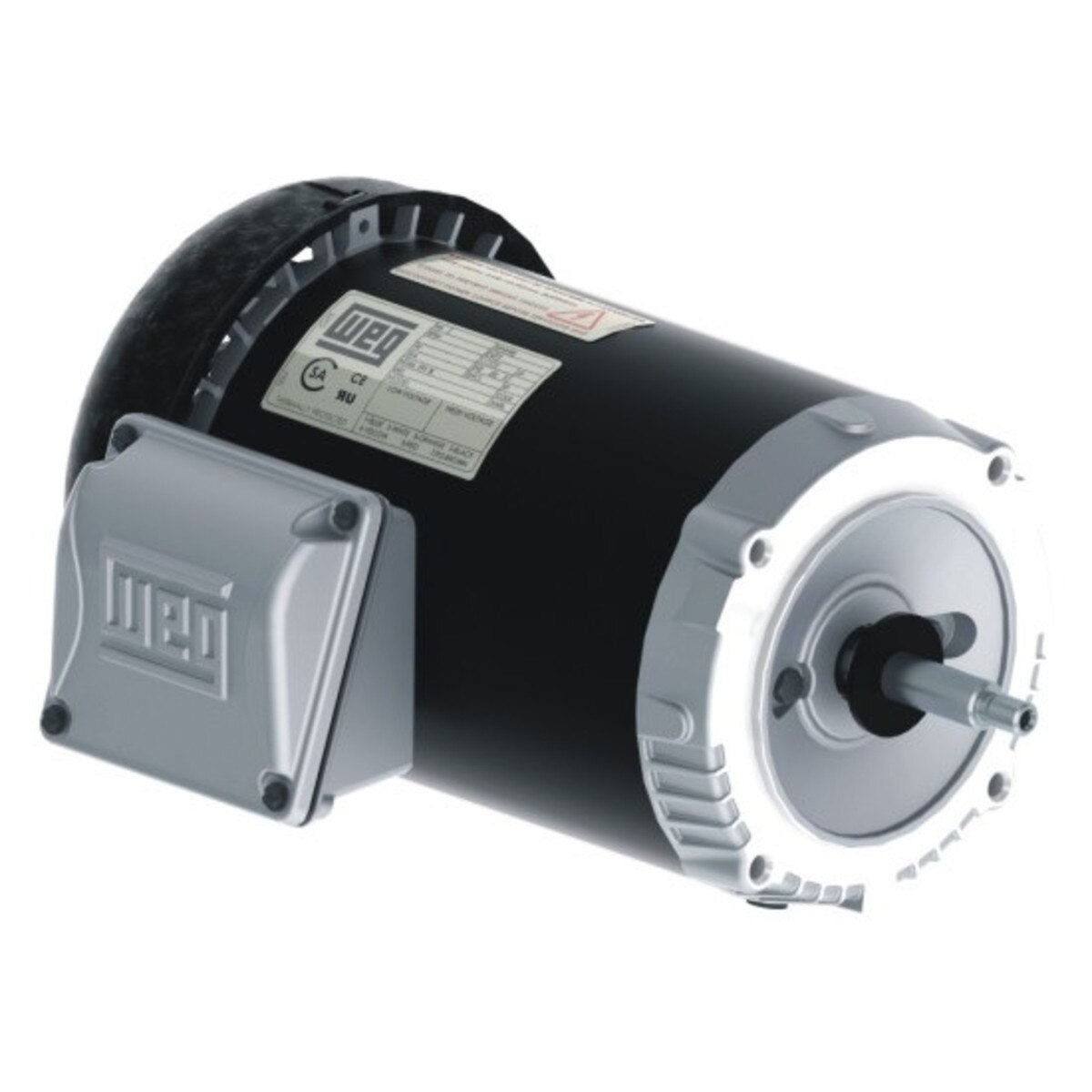

Weg 00336ET3EJPR56J-S 3HP 3505RPM 56J TEFC 3PH Jet Pump Motor

Product Description

The WEG 00336ET3EJPR56J-S 3HP Three Phase Jet Pump Motor provides torque and durability for commercial applications. It features Nema Premium Efficiency and a stainless steel shaft end. Designed with C Face mounting provisions and no base, this motor has an Insulation Class F. It is suitable for jet pump applications.

• Nema Premium Efficiency
• 5/8" Threaded output shaft
• Stainless steel shaft end

Product Highlights

This WEG jet pump motor is ideal for robust commercial use, offering reliable performance and energy efficiency.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00336ET3EJPR56J-S
• Country of Origin: Brazil

Technical Specifications

• Brand: WEG
• Application: Jet Pump
• Output HP: 3
• Output KW: 2.2
• Output RPM: 3505
• Frame Size NEMA: 56J
• Mount NEMA: C Face No Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 230/460//190-220/380-415 V
• Model: 00336ET3EJPR56J-S
• Frequency: 60 Hz
• Phase: 3
• Full Load Amps: 7.76-7.02/3.51 A
• Locked rotor current (II/In): 9.5
• Locked Rotor Torque: 300 %
• Break Down Torque: 380 %
• Efficiency (%) 50: 84.0
• Efficiency (%) 75: 86.5
• Efficiency (%) 100: 86.5
• Power factor (%) 50: 0.78
• Power factor (%) 75: 0.87
• Power factor (%) 100: 0.91
• Service Factor: 1.15
• Inertia: 0.16635 sq.ft.lb
• L.R. Time: 10 s
• Standard: NEMA MG-1
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Mounting: F-1
• Flange: C
• Terminal box: Left position
• Enclosure: IC411 - TEFC
• Rated speed: 3500 rpm
• Slip: 2.78 %
• Rated voltage: 230/460 V
• Rated current: 7.02/3.51 A
• L. R. Amperes: 66.7/33.3 A
• LRC: 9.5x(Code K)
• No load current: 2.56/1.28 A
• Rated torque: 4.50 ft.lb
• Locked rotor time: 18s (cold) 10s (hot)
• Moment of inertia (J): 0.1663 sq.ft.lb
• Design: B
• Insulation Class: F
• Temperature rise: 80 K
• Duty Cycle: Cont.(S1)
• Starting Method: -
• Ambient temperature: -20degC to +40degC
• Altitude: 1000 m.a.s.l.
• Rotation: CCW
• Noise level: 68.0 dB(A)
• Rated Speed: 3505 rpm
• Slip (%): 2.64
• Rated Voltage (V): 230/460
• Rated Current (A): 7.34/3.67
• L. R. Amperes (A): 68.3/34.1
• No load Current (A): 3.20/1.60
• Rated Torque (ft.lb): 4.49
• Locked Rotor Torque (%): 280
• Breakdown Torque (%): 380
• Approx. Weight (lb): 45.5
• Efficiency 25%: 78.7
• Efficiency 50%: 81.0
• Efficiency 75%: 84.0
• Power Factor 25%: 0.45
• Power Factor 50%: 0.71
• Power Factor 75%: 0.82
• Power Factor 100%: 0.87
• Frame Material: Rolled Steel
• Impregnation Method: Dip and Bake Polyester
• Main terminal box hole: 1.881″
• Terminal Block: Without
• Shaft Locking Device: Without
• Drain: Rubber, automatic
• Shaft Material: AISI 304 Stainless Steel
• Painting: Munsell N 1 – Matte 207N (ISO 12944 – C2)
• Grounding Lugs: Single
• Fan Cover material: Steel
• Tropicalized Painting: Without
• Bearing cap: Yes
• Drip Cover: Without
• Overload Protector (phenolic): Without
• Screw Cap: Carbon Steel SAE 1010/20
• Fan Material: Plastic
• Frame: 56
• Poles: 02
• Full Voltage - No Cables: 208-230/460//190-220/380-415 V
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Rotation Direction: Counter Clockwise
• Enclosure Material: Steel Plate
• Front Bearing Shielding: 2RS
• Front Bearing Size: 6203
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: 2RS
• Rear Bearing Size: 6202
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 5:1
