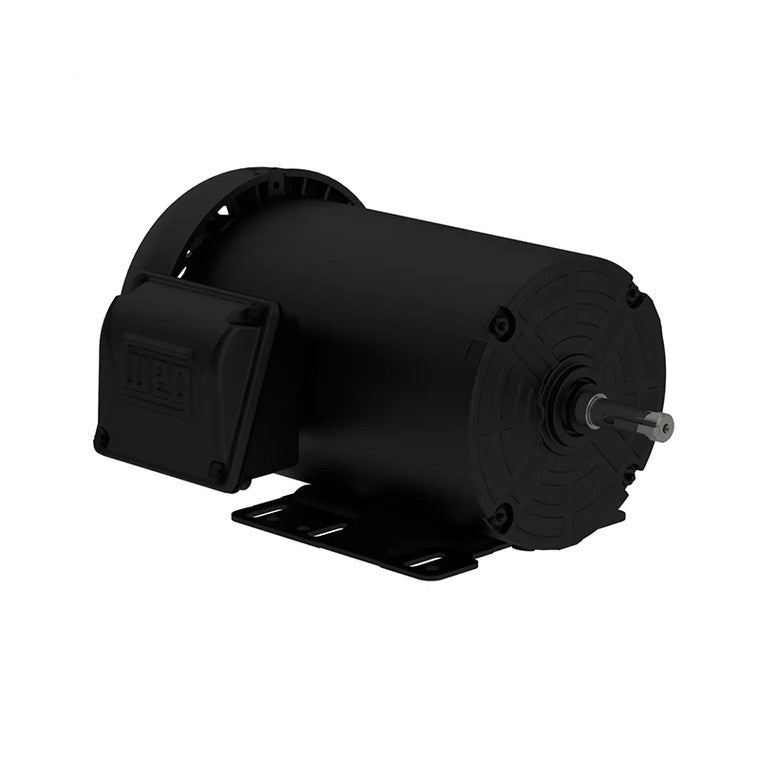

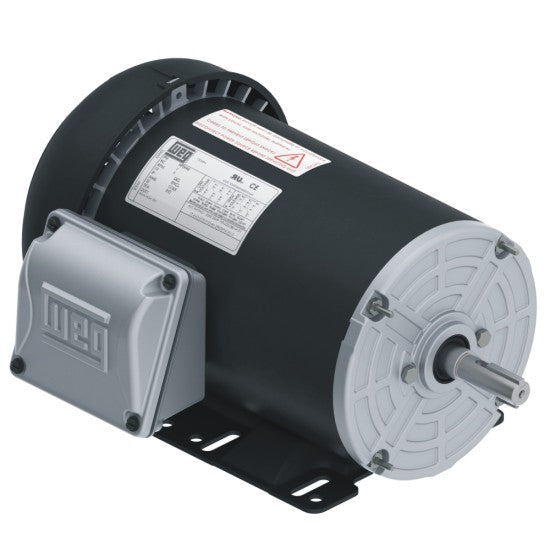

Weg 00336ET3E56-S 3 hp 3600 RPM 56H TEFC 3PH Motor

Product Description

The WEG 00336ET3E56-S is a 3 HP three-phase general-purpose rolled steel motor, perfect for applications requiring robustness and high performance. These motors feature good thermal performance and easy installation and maintenance. With a steel plate frame and aluminum endshields, these motors provide torque and durability for severe applications.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• Variable Torque: 1000:1
• Constant Torque: 2:1
• 5/8" Keyed output shaft

Product Highlights

WEG's 00336ET3E56-S rolled steel motor delivers reliable performance and energy savings for diverse industrial and commercial applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00336ET3E56-S

Technical Specifications

• Brand: WEG
• Application: General Purpose
• Output HP: 3 HP
• Output KW: 2.2
• Output RPM: 3505
• Frame Size NEMA: 56H
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 230/460//190-220/380-415
• HP: 3
• RPM: 3600
• Enclosure: TEFC
• Frame: 56H
• Frame Remarks: Footed
• Volts: 208-230/460*
• Phase: 3
• Manufacturer: WEG
• Model: 00336ET3E56-S
• Replaces: 00336ES3E56-S
• Full Load Amp (FLA): 3.5
• Hz: 60
• Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Motor Frame Size: 56H
• Motor Type: Premium Efficient
• Product Notes: Rolled Steel Frame - Cannot be modified with T Box on opposite side
• Quick Specs: 3HP 3600 3 60 230/460
• Service Factor: 1.15
• Speed (RPM): 3600
• Full Load Amps: 7.76-7.02/3.51 A
• Locked rotor current (II/In): 9.5
• Locked Rotor Torque: 300 %
• Break Down Torque: 380 %
• Efficiency (%) 50: 84.0
• Efficiency (%) 75: 86.5
• Efficiency (%) 100: 86.5
• Power factor (%) 50: 0.78
• Power factor (%) 75: 0.87
• Power factor (%) 100: 0.91
• Inertia: 0.16635 sq.ft.lb
• L.R. Time: 10 s
• Horsepower Rating: 3 HP
• Synchronous RPM: 3600 RPM
• Frame Size: 56H
• Rated Supply Voltage: 230/460 V
• Rated Voltage: 230 V, 460 V
• Construction: Rolled Steel
• C Dimension: 15.079
• Mounting Type: Foot Mount
• Rated Input Frequency: 60 Hz
• Motor Full Load Amps: 3.5 A
