Weg 00336ET3E182TC-W22 W22 NEMA Premium Efficiency 3 HP 2P 182/4TC

Product Description

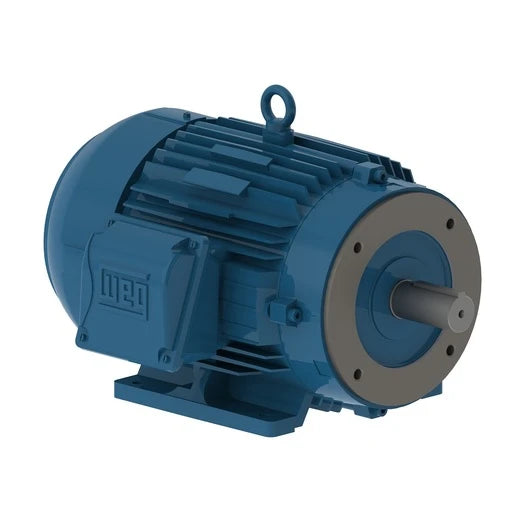

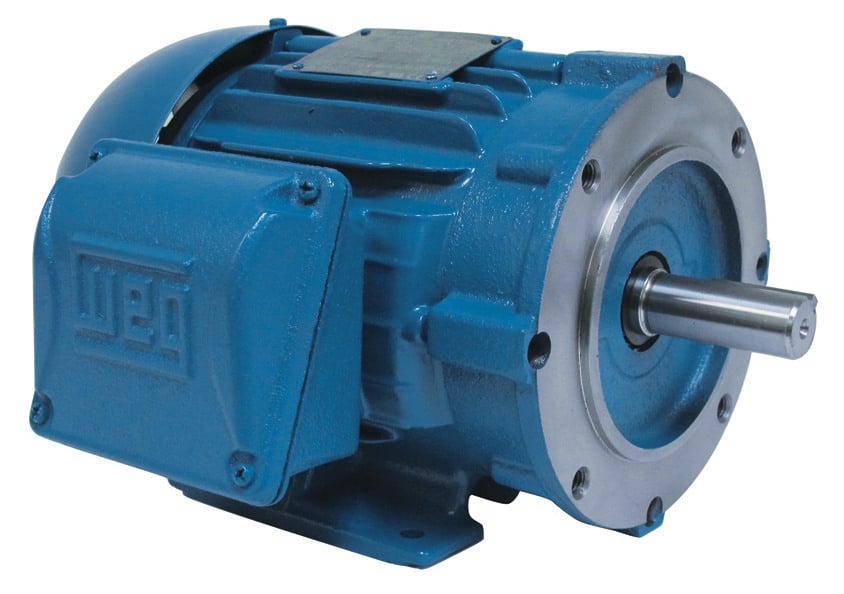

The WEG 00336ET3E182TC-W22 motor features a cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, making it suitable for a variety of industrial applications. It delivers 3 HP at 3600 RPM and is Totally Enclosed Fan Cooled (TEFC).

• NEMA MG-1 Standard
• 60//50 Hz Frequency
• 230/460//380 V Voltage

Product Highlights

This WEG motor is designed for high performance and energy efficiency, with an optimized cooling system for reliability and extended life.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00336ET3E182TC-W22

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Voltage: 230/460//380 V
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Output rating: 3 HP
• Mounting: F-1
• Flange: C
• Terminal box : Left position
• Enclosure: TEFC
• HP: 3
• RPM: 3600
• Frame: 182/4TC
• Phase: 3
• Manufacturer: WEG
• Classification: Three Phase
• Model: 12445770
• Horsepower: 3 hp
• Motor Type: TEFC
• All - Specific Ratings: IP55
• All - Voltage: 230/460VAC
• Rated Voltage: 208-230/460 V
• Rated Speed: 3515 rpm
• No Load Current: 1.30-2.60/1.30 A
• Rated Current: 8.01-7.26/3.63 A
• Rated Torque: 4.42 ft.lb
• Frame Material: Cast Iron
• Application: General Purpose
• Output KW: 2.2
• Output RPM: 3515
• Frame Size NEMA: 182/4TC
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Motor Phase: 3 ph
• Motor Horsepower: 3 hp
• Motor Supply Voltage: 190/380//208-230/460 V
• Frequency Rating: 50/60 Hz
• Duty Condition Type: Continuous Duty
• Mounting Type: C-Face / Foot
• Full Load Current: 3.63 A
• Full Load Efficiency: 86.50 %
• Volts @ Frequency: 190 V @ 50 Hz; 380 V @ 50 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Description Keyword: 3 hp
• Overall Length C Dimension: 15.86 in
• Service Factor: 1.25
• Insulation Class: F
• IP Rating: 55
• Standards Met: UL, CSA, CE
• Applications: Industrial and Commercial Pumping Applications, Process, Transfer and Circulating Pumps, Water Pumping
• Harmonization Code: 8501.52.4000
• Motor Category: General Purpose Motor
• Product Type: General Purpose Motors
• Speed: 3,600 RPM
• NEMA Frame: 182TC
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Current Rating: 3.63 A
• Composition: Cast Iron
