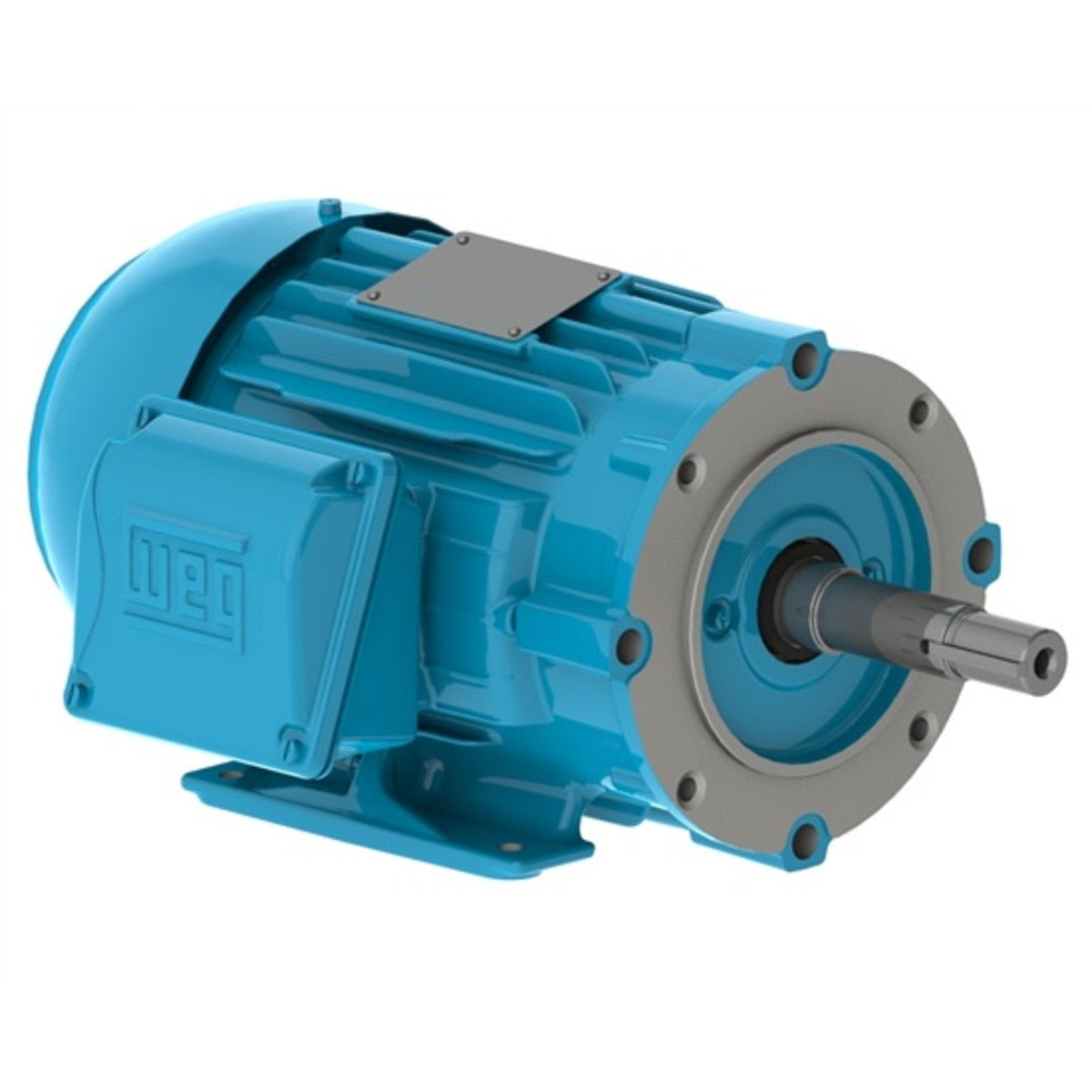

Weg 00336ET3E182JM-W22 Pump Mtr, 3-Ph, 3hp, 182JM

Product Description

The WEG 00336ET3E182JM-W22 is a 3-phase, 3hp pump motor with a 182JM frame. This NEMA Premium efficient motor is totally enclosed and fan-cooled (TEFC). Designed for high performance and maximum energy efficiency, it features an improved cooling system and solid feet for cooler operation, reduced vibration, and noise.

• UL Recognized, CSA Certified, CE Compliant
• NEMA Premium Efficient
• Totally Enclosed Fan-Cooled
• Inverter Rated 1000:1 VT
• Durable cast iron frame

Product Highlights

This WEG pump motor is designed for efficiency and durability, suitable for various industrial applications requiring a reliable and energy-efficient motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00336ET3E182JM-W22
• Country of Origin: Brazil

Technical Specifications

• Voltage: 208-230/460 V
• MPN: 00336ET3E182JM-W22
• Brand: WEG
• Product Type: WATER_PUMP
• Frequency: 60 Hz
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Output rating: 3 HP
• Mounting: F-1
• Flange: C
• Enclosure: IC411 - TEFC
• Application: Closed Coupled
• Output HP: 3//2
• Output KW: 2.2//1.5
• Output RPM: 3515//2935
• Frame Size NEMA: 182/4JM
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Phase: Three Phase
• Frame: 182/4
• Poles: 02
• Rated speed: 3515 rpm
• Slip: 2.36 %
• Full Voltage - No Cables: 208-230/460//380 V
• Rated Current: 7.26/3.63 A
• LR Amperes: 62.4/31.2 A
• LRC: 8.6x(Code K)
• No Load Current: 2.60/1.30 A
• Rated Torque: 4.48 ft.lb
• Locked Rotor Torque: 250 %
• Breakdown Torque: 360 %
• Insulation Class: F
• Service Factor: 1.25
• Moment of Inertia: 0.1889 sq.ft.lb
• Design: B
• Locked Rotor Time: 50s (cold) 28s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Rotation Direction: Both
• Noise Level: 66.0 dB(A)
• Starting Method: Direct
• Enclosure Material: Iron
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6307
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6206
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 20:1
• Alternate Part Number: 12598689
• Series: W22 Series
