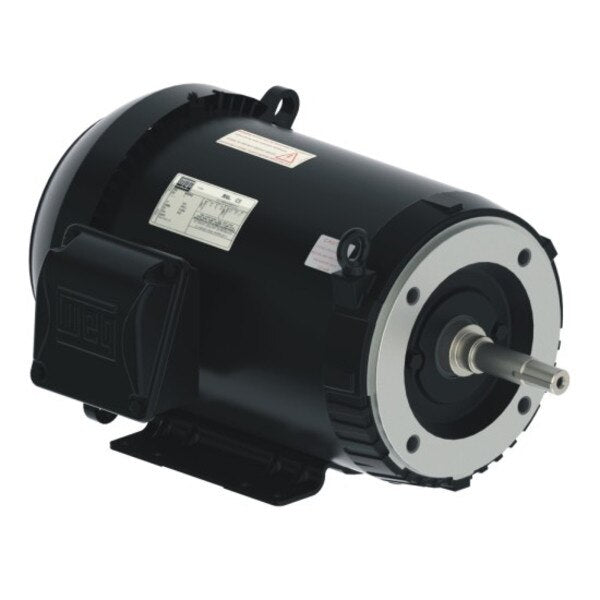

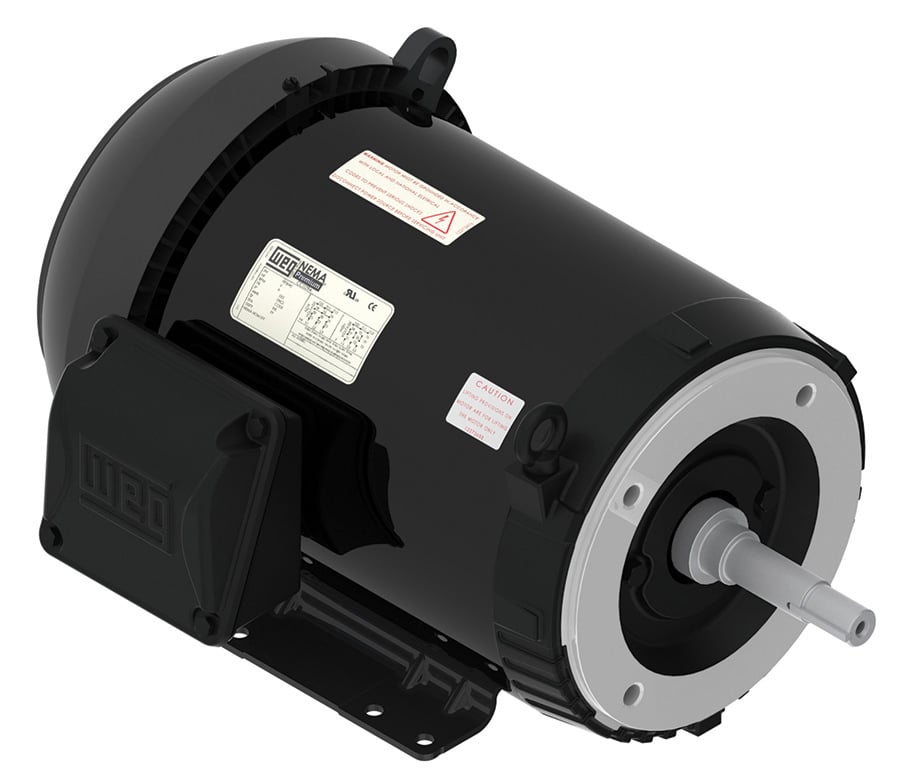

Weg 00336ET3E182JM-S 3hp 3600 close-coupled pump motor - jm frame

Product Description

The WEG 00336ET3E182JM-S is a 3HP three-phase JM pump motor designed for high performance and maximum energy efficiency. It operates at 3600 RPM and is suitable for environments of dirt, dust, and moisture, on indoor and outdoor applications. The motor features a rolled steel construction and TEFC enclosure.

• NEMA Premium efficiency rating
• Durable rolled steel frame
• Optimized ventilation system for cooler operation and reduced noise level

Product Highlights

Ideal for commercial and industrial centrifugal pumps, ensuring maximum energy savings and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00336ET3E182JM-S
• Country of Origin: Brazil

Technical Specifications

• Full Load Amp (FLA): 3.7
• HP: 3
• Hz: 60
• KW: 2.2
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: 182/4JM
• Motor Type: Premium Efficient
• Phase: 3
• Product Notes: Rolled Steel Frame - Cannot be modified with T Box on opposite side
• Quick Specs: 3HP 3600 3 60 230/460
• Service Factor: 1.15
• Speed (RPM): 3600
• Voltage: 230/460
• Application: Closed Coupled
• Output HP: 3
• Output KW: 2.2
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Output rating: 3 HP
• Mounting: F-1
• Flange: C
• Enclosure: IC411 - TEFC
• RPM: 3515
• Volts: 208/230/460
• Manufacturer: WEG
• Classification: JM-JP & Jet Pump
• Model: 13346126
• Output: 3 HP
• Poles: 2
• Torque: 4.42 lb.ft
• Full Load Amps: 8.12-7.34/3.67 A
• Efficiency (100%): 86.5
• Power factor (100%): 0.87
• Insulation: F
• Noise: 68 dB(A)
• No load current: 3.22/1.61 A
• Locked rotor current (II/In): 8.8
• FL Amps @ High: 3.67
• FL Eff (%): 86.5
• C Dimension (in): 17.835
• Rated speed: 3515 rpm
• Slip: 2.36 %
• Full Voltage - No Cables: 208-230/460//190-220/380-415 V
• Rated Current: 7.34/3.67 A
• LR Amperes: 64.6/32.3 A
• LRC: 8.8x(Code K)
• Rated Torque: 4.48 ft.lb
• Locked Rotor Torque: 220 %
• Breakdown Torque: 300 %
• Insulation Class: F
• Moment of Inertia: 0.1564 sq.ft.lb
• Design: B
• Locked Rotor Time: 39s (cold) 22s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 C
• Minimum Room Temperature: -20 C
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Rotation Direction: Both
• Enclosure Material: Steel Plate
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6207
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6205
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 10:1
