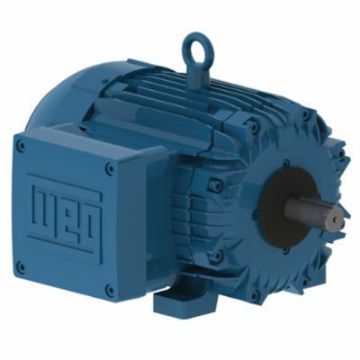

WEG 00318XT3E182T WEG 3 hp AC Three Phase Motor Hazardous Location

Product Description

The WEG 00318XT3E182T is an AC motor designed for hazardous locations. This motor has a power output of three horsepower and operates on voltages of two hundred eight, two hundred thirty, or four hundred sixty VAC. With a frequency of sixty Hertz, it runs at a speed of one thousand seven hundred sixty RPM.

• Totally enclosed fan cooled enclosure
• Footed mount for easy installation
• Explosion proof features for safety

Product Highlights

This AC motor is suitable for applications in elevator motors, fan and blower setups, and other machinery requiring reliable motor operation. Its design allows for CW and CCW rotation, providing flexibility in various industrial settings.

Product Information

Standard Information

• Brand: WEG
• Type: Hazardous Location

Technical Specifications

• MPN: 00318XT3E182T
• Frame: 182T
• Phase: 3
• Speed: 1760 RPM
• Horsepower: 3 hp
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 8.65 to 7.82/3.91 A
• Torque Rating: 8.83 ft-lb
• Insulation Class: Class F
• Service Factor: 1.149
• Shaft Size: 1-1/8 in Dia x 2-3/4 in L
• Temperature Rating: -20 to 40 deg C
• Enclosure Type: Totally Enclosed Fan Cooled
• Mounting Type: Footed
• Special Features: 4-Pole, Direct On Line Starting Method, Explosion Proof AC Motors
• Application Type: Elevator Motors, Fan & Blower Motors
• Frequency Rating: 60 Hz
• Bearing Type: Ball
