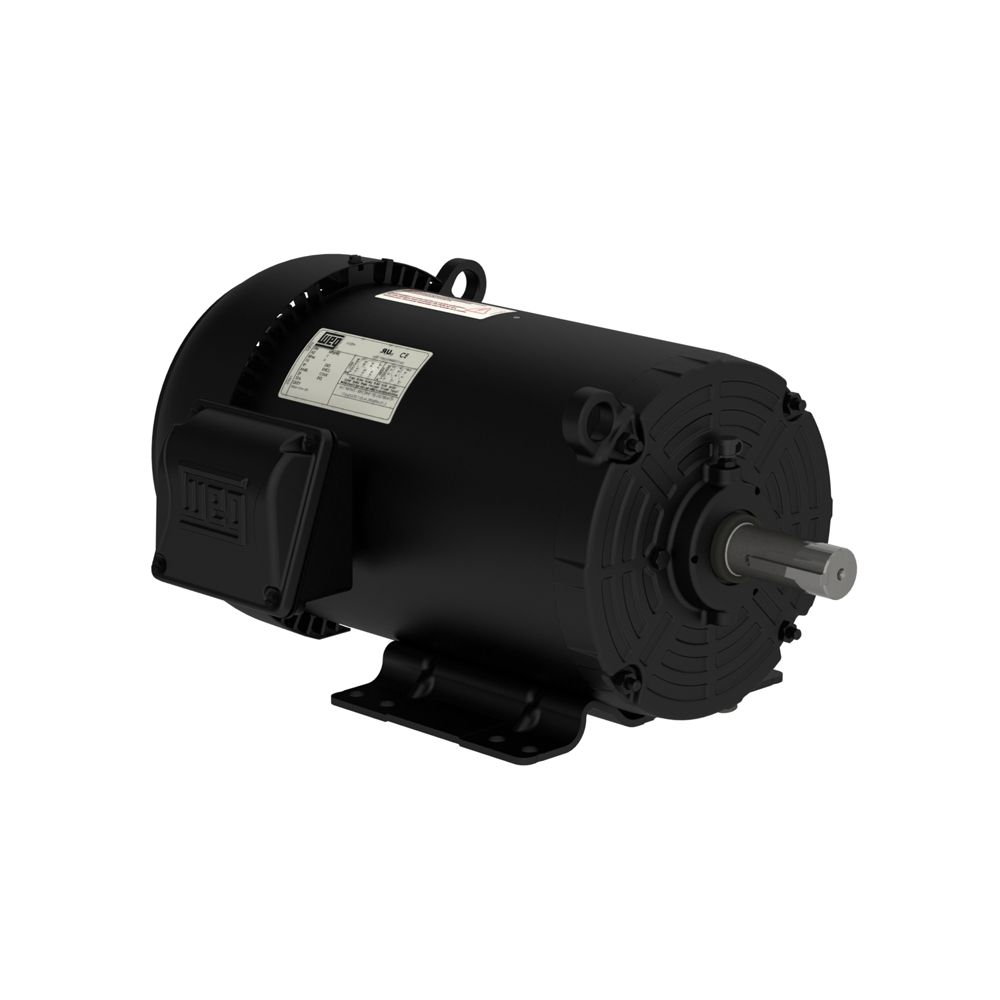

WEG 00318ET3E182T-S MOTOR 3HP 4P 182/4T WCF2

Product Description

The WEG 00318ET3E182T-S is a three horsepower AC motor designed for continuous duty in general purpose applications. This motor operates at a voltage range of 208 to 460 VAC and is suitable for environments with a temperature range of minus twenty to forty degrees Celsius. It features a robust construction with a totally enclosed fan cooled enclosure and a 182/4T frame. The motor supports both clockwise and counter-clockwise rotation and has a service factor of 1.15.

• Continuous duty operation
• IP55 rated for protection against dust and water
• Three-phase motor with a speed of 1765 RPM

Product Highlights

This motor is ideal for various applications where reliability and efficiency are key. It is suitable for equipment that requires consistent operation, making it a perfect choice for HVAC systems, conveyors, and other industrial machinery.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• Application Type: General Purpose AC Motors

Technical Specifications

• Amperage Rating: 8.43 to 7.62/3.81 A
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Dimensions: 17.913 in L
• Mounting Type: Footed
• Torque Rating: 8.81 ft-lb
• Speed: 1765 rpm
• Frame: 182/4T
• Rotation: CW/CCW
