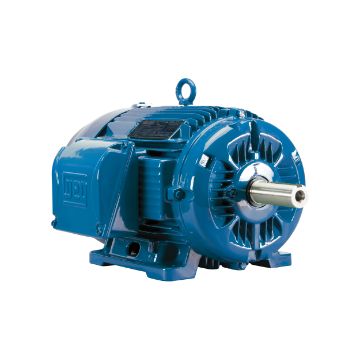

WEG 00312ET3E213T-W22 Electric Motor 3 hp 213/5T

Product Description

The WEG 00312ET3E213T-W22 is a continuous-duty AC motor designed for a variety of industrial applications. This motor provides reliable performance with a horsepower of three and operates at voltages of 208, 230, or 460 VAC. It has a totally enclosed fan cooled enclosure, ensuring protection against dust and moisture. The motor features a 213/5T frame size and a speed of eleven hundred seventy-five revolutions per minute. Flexibly mounted, it can handle various installation requirements.

• Continuous-duty operation suitable for general purpose applications
• Footed mounting for stability
• Ball bearing design for reduced friction and increased longevity

Product Highlights

This WEG motor is ideal for AC applications where efficient power transfer is needed. It is designed to operate in temperature ranges from negative twenty to forty degrees Celsius, making it suitable for diverse environments.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• Type: Continuous-Duty

Technical Specifications

• Frame: 213/5T
• Phase: 3
• Speed: 1175 rpm
• Horsepower: 3 hp
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 9.76 to 8.83/4.41 A
• Enclosure Type: Totally Enclosed Fan Cooled
• Temperature Rating: -20 to 40 deg C
