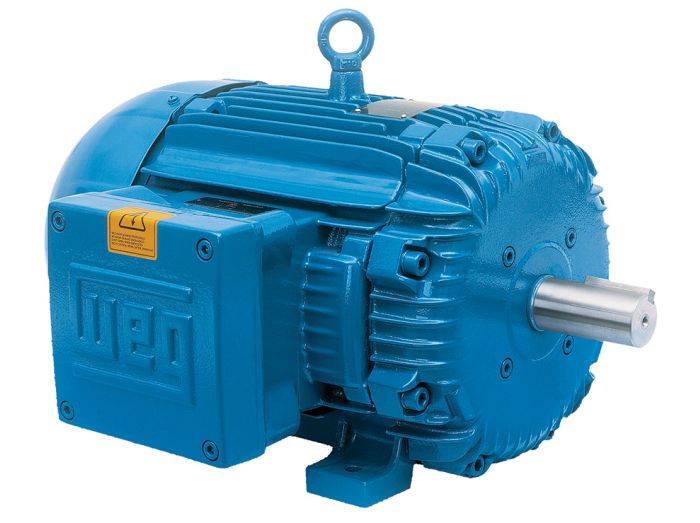

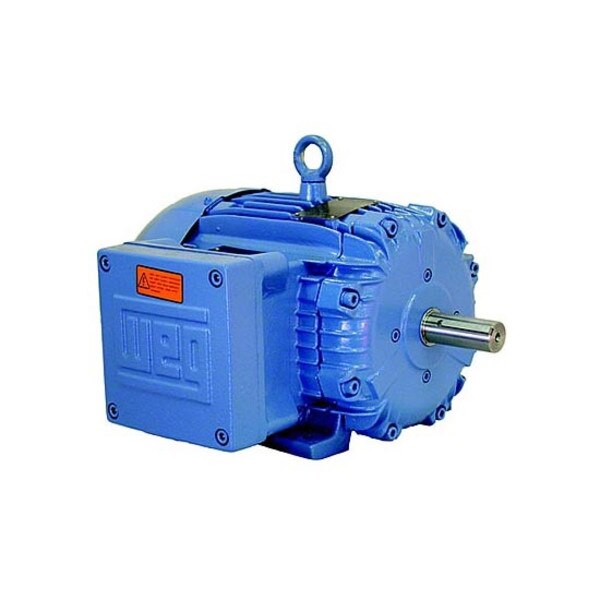

Weg 00236XT3E145T 2HP 3490RPM 143/5T TEFC 3PH Explosion Proof Motor

Product Description

The WEG 00236XT3E145T is a 2HP three-phase explosion-proof motor suitable for applications requiring certification for hazardous locations. This motor features a NEMA premium efficiency rating and is inverter rated for variable and constant torque. It has a durable IP55 rated cast iron enclosure and a stainless steel nameplate.

• NEMA Premium efficiency rating
• Inverter Rated: Variable Torque - 1000:1 Class 1&2, Constant Torque - 20:1 Class 1&2
• Durable IP55 rated cast iron enclosure

Product Highlights

This explosion-proof motor is designed for hazardous environments, featuring robust construction and meeting Division I/Zone 1 explosive atmosphere requirements. It is certified for VFD service.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00236XT3E145T
• Country of Origin: Brazil

Technical Specifications

• Brand: WEG
• Application: Explosion Proof
• Output HP: 2 HP
• Output KW: 1.5
• Output RPM: 3490
• Frame Size NEMA: 143/5T
• Mount NEMA: With Base
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• Voltage: 230/460 V
• Standard: NEMA MG-1
• Frequency: 60 Hz
• Number of poles: 2
• Synchronous speed: 3600 rpm
• Mounting: F-1
• Flange: Without
• Terminal box : Left position
• Explosion Proof: Yes
• Full Load Amp (FLA): 2.69 A
• Motor Enclosure Type: XP - Explosion Proof
• Motor Frame Size: 145T
• Motor Type: Premium Efficient
• Phase: 3
• Service Factor: 1.15
• Speed (RPM): 3600
• Rated speed: 3495 rpm
• Slip: 2.92 %
• Full Voltage - No Cables: 208-230/460 V
• Rated Current: 5.38/2.69 A
• LR Amperes: 49.5/24.7 A
• LRC: 9.2x(Code L)
• No Load Current: 2.40/1.20 A
• Rated Torque: 3.01 ft.lb
• Locked Rotor Torque: 370 %
• Breakdown Torque: 420 %
• Insulation Class: F
• Moment of Inertia: 0.0551 sq.ft.lb
• Design: B
• Locked Rotor Time: 27s (cold) 15s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 \t " [40.000000000000040.0 °C
• Minimum Room Temperature: -20 °C
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Rotation Direction: Both
• Noise Level: 68.0 dB(A)
• Starting Method: Direct
• Enclosure Material: Iron
• Front Bearing Shielding: 2RS
• Front Bearing Size: 6205
• Front Bearing Type: Ball
• Front Sealing Type: Oil Seal
• Rear Bearing Shielding: 2RS
• Rear Bearing Size: 6204
• Rear Bearing Type: Ball
• Rear Sealing Type: Lip Seal
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 20:1
• Manufacturer Part Number: 00236XT3E145T
• Family Series: WEG Electric Motors
• Description: 2HP 3600 60 208-230/460, J2
• Type: Explosion Proof
• Horsepower: 2 hp
• Speed: 3,600 RPM
• RPM: 3,600 RPM
• NEMA Frame: 145T
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Totally Enclosed Fan Cooled: Totally Enclosed Fan Cooled
• Foot Mount: Foot Mount
• Current Rating: 2.69 A
• Composition: Cast Iron
• Series: W21 XP (Explosion Proof)
• Mounting Design: Foot Mount
