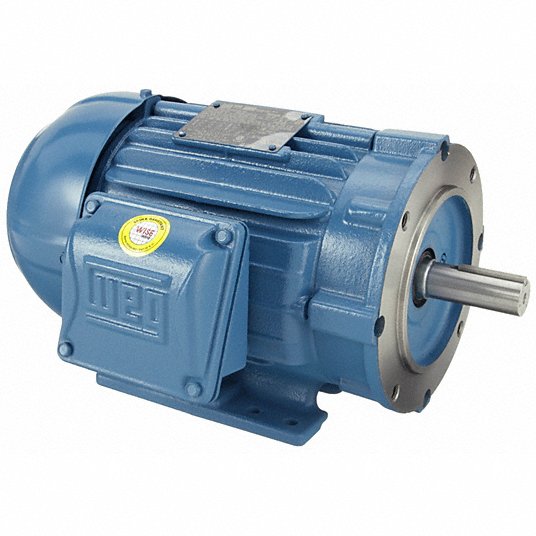

Weg 00236ET3E145TC-W22 Motor 2HP 2P 143/5TC WFF2

Product Description

The WEG Electric Corp Model 00236ET3E145TC-W22 is a reliable motor with a two-horsepower capacity. This motor is designed for continuous-duty applications and runs efficiently at 208/230/460 VAC. It features a totally enclosed fan-cooled enclosure that protects the motor components. This electric motor operates at a frequency of 60 Hz and it supports CW and CCW rotation for versatile installation.

• Three-phase operational capability
• Heavy-duty ball bearings for smooth operation
• Constructed with corrosion-resistant cast iron

Product Highlights

This motor is suitable for general purpose applications, ensuring optimal performance and durability in various settings.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Power Rating: 2 horsepower

Technical Specifications

• Amperage Rating: 5.6 to 5.12/2.56 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 20:1
• Dimensions: 13.358 inches long
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 143-5TC
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: C-Face Footed
• Number of Speeds: 1
• Phase: Three-phase
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 7/8 inches diameter x 2-1/4 inches long
