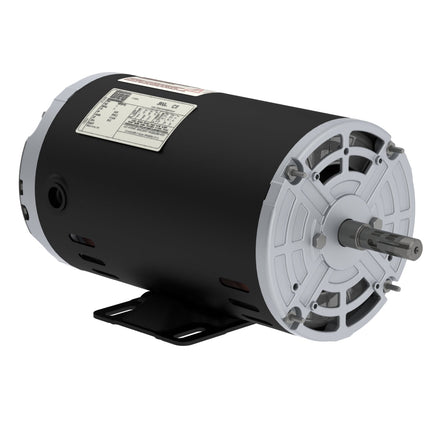

Weg 00218OT3E56Z-S 2 HP 1800 RPM 56Z ODP Three-Phase Motor

Product Description

The WEG 00218OT3E56Z-S is an Open Drip Proof (ODP) Three-Phase motor suitable for home, office, farm, and light industrial use. This motor is NEMA Premium Efficiency (DOE Compliant) and features a rolled steel frame painted with a nano-ceramic coating for corrosion protection. It is rated for IP21 protection.

• Open Drip Proof (ODP)
• Three-Phase
• NEMA Premium Efficiency (DOE Compliant)

Product Highlights

This WEG motor is an economical and durable motor suitable for various applications. The open enclosure offers a light-weight, quite and cost-effective motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00218OT3E56Z-S

Technical Specifications

• Model: 00218OT3E56Z-S
• Phase: Three-Phase
• Power: 2 HP
• Base RPM: 1800
• Frame: 56Z
• Enclosure: ODP
• Enclosure Rating: IP21
• Voltage: 230/460V
• Construction: Rolled Steel
• Weight: 40.66 lb
• Frequency: 60 Hz
• Power Rating: 2 HP (Horsepower)
• Pole Configuration: 4 Poles
• Efficiency Class: Premium efficiency rating
• Motor Enclosure Type: ODP - Open Drip Proof
• Motor Frame Size: 56HZ
• Motor Type: Premium Efficient
• Speed (RPM): 1800
• Standard: NEMA MG-1
• Number of poles: 4
• Synchronous speed: 1800 rpm
• Output rating: 2 HP
• Mounting: F-1
