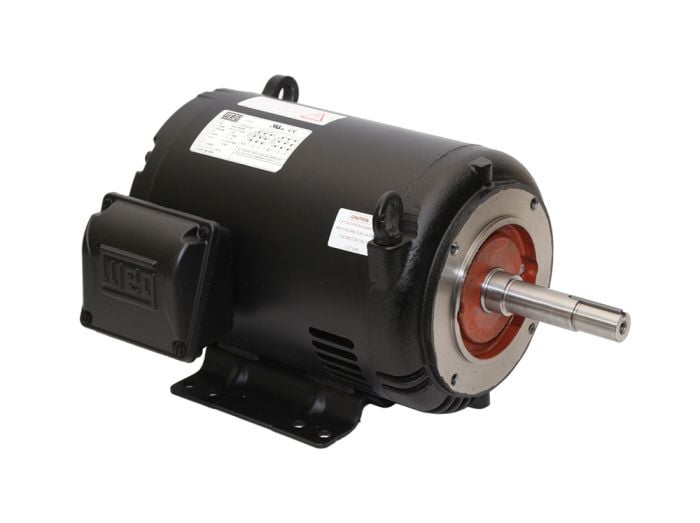

Weg 00218OT3E145JM-S Close Coupled Pump Motor 2 HP

Product Description

The WEG 00218OT3E145JM-S is a 2 HP close-coupled pump motor designed for demanding applications in environments where dirt and humidity are minimal. This three-phase motor provides maximum ventilation and heat dissipation. It is a premium efficient motor with a durable rolled steel frame and ODP enclosure.

• NEMA Premium efficiency rating
• Durable rolled steel frame
• Class F insulation

Product Highlights

This WEG pump motor is designed for high-performance pumping in commercial and industrial applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00218OT3E145JM-S

Technical Specifications

• Motor Category: Close Coupled Pump Motor
• Motor Phase: 3 ph
• Motor Horsepower: 2 hp
• Synchronous Rpm: 1800 rpm
• Motor Supply Voltage: 190/380//208-230/460 V
• Frame Size: 143/5JM
• Enclosure Type: ODP (Open Drip-Proof)
• Frequency Rating: 50/60 Hz
• Duty Condition Type: Continuous Duty
• Full Load Efficiency: 86.50 %
• Volts @ Frequency: 190 V @ 50 Hz; 380 V @ 50 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Standards Met: UL, CSA, CE
• Overall Length C Dimension: 14.49 in
• Service Factor: 1.15
• Frame Material: Rolled Steel
• Insulation Class: F
• IP Rating: 23
• Mounting Type: C-Face / Foot Mounted
• Product Type: Pump Motors
• Full Load Amp (FLA): 2.7
• KW: 1.5
• Motor Enclosure Type: ODP - Open Drip Proof
• Motor Type: Premium Efficient
• Speed (RPM): 1800
• Voltage: 230/460
• Application: Closed Coupled
• Output HP: 2
• Output KW: 1.5
• Output RPM: 1740
• Frame Size NEMA: 143/5JM
• Mount NEMA: C Face With Base
• Enclosure NEMA: ODP
• Frequency (Hz): 60//50
• Base RPM: 1745
• Current Type: AC
• Full Load Amps: 5.9-5.3/2.6
• Nominal Rated Input Voltage: 460 V, 230 V
• Actual Rated Input Voltage: 208-230/460
• Rated/Full-Load Torque: 14-31/64"
• Rated Load (HP): 2
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Type: General Purpose
• Horsepower: 2 hp
• RPM: 1,800 RPM
• Phase: 3
• Frequency: 60 Hz
• NEMA Frame: 143/5JM
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Mounting: Foot Mount
• Current Rating: 2.69 A
• Composition: Steel
