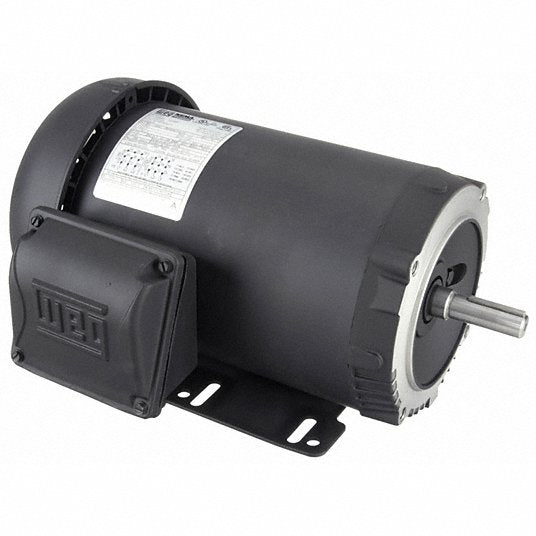

Weg 00218ET3E56C-S General Purpose Motor 2 HP 56H Frame

Product Description

The WEG 00218ET3E56C-S is a 2 HP general purpose motor with a 56H frame. This three-phase motor is totally enclosed and fan-cooled, offering NEMA Premium efficiency. It supports a voltage of 208-230/460V AC and is inverter rated, suitable for general applications requiring continuous duty.

• UL, CSA certified
• NEMA Premium Efficient
• Totally Enclosed Fan-Cooled

Product Highlights

This 2 HP WEG motor is ideal for various general purpose applications. It features a rigid base mount, all-angle mounting position, and continuous duty cycle.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00218ET3E56C-S
• Country of Origin: Multiple

Technical Specifications

• HP: 2
• Hz: 60
• Duty: Continuous
• Item: General Purpose Motor
• Frame: 56HC
• Phase: Three
• Voltage: 230/460V AC
• Includes: Conduit Box
• HP @ 50Hz: 2 hp
• RPM Group: 1701-1800
• RPM Range: 1,701-1,800
• Standards: CSA, UL
• Ins. Class: F
• RPM @ 50Hz: 1,420
• Shaft Dia.: 5/8 in
• NEMA Design: None
• Motor Design: 3-Phase
• Shaft Length: 1 7/8 in
• Nameplate RPM: 1,745
• No. of Speeds: 1
• Usable @ 208V: Yes
• Frame Material: Rolled steel
• Full Load Amps: 5.4/2.7
• Inverter Rated: Yes
• Motor Bearings: Ball
• Overall Length: 13 7/8 in
• Length Less Shaft: 12 in
• Motor Application: General Application
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Design: Keyed
• Nominal Efficiency: 86.5 %
• Motor Mounting Type: Rigid Base
• Motor Frame Material: Steel
• Motor Service Factor: 1.15
• Motor Shaft Rotation: CW/CCW
• Full Load Amps @ 50Hz: 5.9/3.1, 6.5/3.3
• Service Factor @ 50Hz: 1, 1.15
• Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
• Motor Efficiency Group: NEMA Premium Efficient
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Motor Mounting Position: All Angle
• Motor Thermal Protection: None
• Green Certification or Other Recognition: NEMA Premium(R) Rated
• UNSPSC: 26101612
