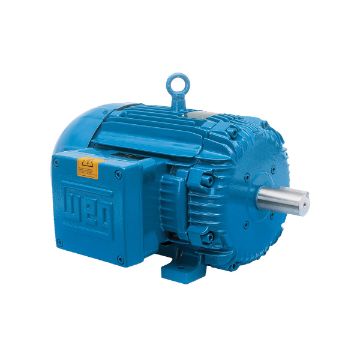

WEG 00158XT3E145T AC Motor Continuous-Duty 1.5 hp 145T Frame

Product Description

The WEG 00158XT3E145T is a continuous-duty AC motor designed for reliable operation in various industrial applications. This explosion proof motor is suitable for use in environments where explosive atmospheres may be present. With a robust construction and a totally enclosed fan cooled enclosure, it offers a high level of safety and durability.

• Power: 1.5 hp
• Voltage: 208/230/460 VAC
• Speed: 1760 rpm

Product Highlights

This motor features CW/CCW rotation and a footed mount, making installation flexible.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• Type: Continuous-Duty

Technical Specifications

• Frame: 145T
• Phase: 3
• Torque Rating: 4.42 ft-lb
• Service Factor: 1.15
• Insulation Class: Class F
• Material: Cast Iron
• Shaft Size: 7/8 in Dia x 2-1/4 in L
• Amperage Rating: 4.53 to 4.1/2.05 A
• Frequency Rating: 60 Hz
• Temperature Rating: -20 to 40 deg C
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 1000:1
