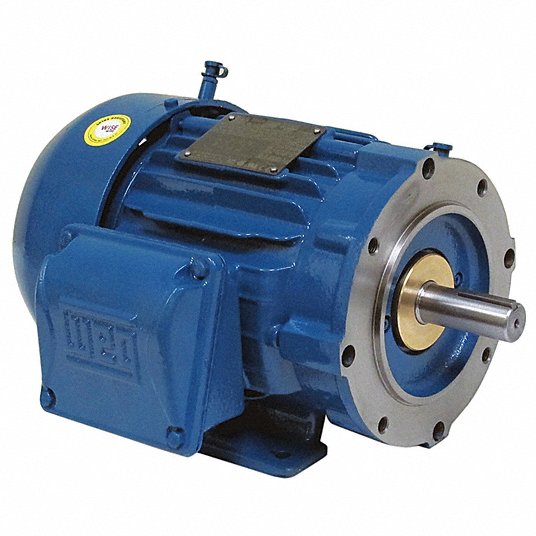

WEG 00158ST3QIE145TC-W22 MOTOR 1.5HP 4P 143/5TC WFF2

Product Description

WEG Electric Corp offers the 00158ST3QIE145TC-W22 motor, a continuous-duty general-purpose AC motor with a power output of 1.5 horsepower. This motor operates on a voltage of four hundred sixty volts and is designed for three-phase applications. It delivers performance at a speed of one thousand seven hundred fifty-five revolutions per minute using a single speed. The motor is built with a totally enclosed fan-cooled enclosure, making it suitable for diverse environments.

• 1.5 horsepower with a frequency of sixty Hertz
• Constructed with a cast iron frame and IP56 rating
• Equipped with a rubber lead separator and regreasable ball bearings

Product Highlights

This motor is ideal for general-purpose applications that require reliable performance and durability.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• UPC: 7891327139923

Technical Specifications

• Amperage Rating: 2.02 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 20:1
• Dimensions: 13.358 inches long
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 143-5TC
• Frequency Rating: 60 Hz
• Horsepower: 1.5 hp
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: C-Face Footed
• Number of Speeds: 1
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 7/8 inch diameter x 2-1/4 inches long
