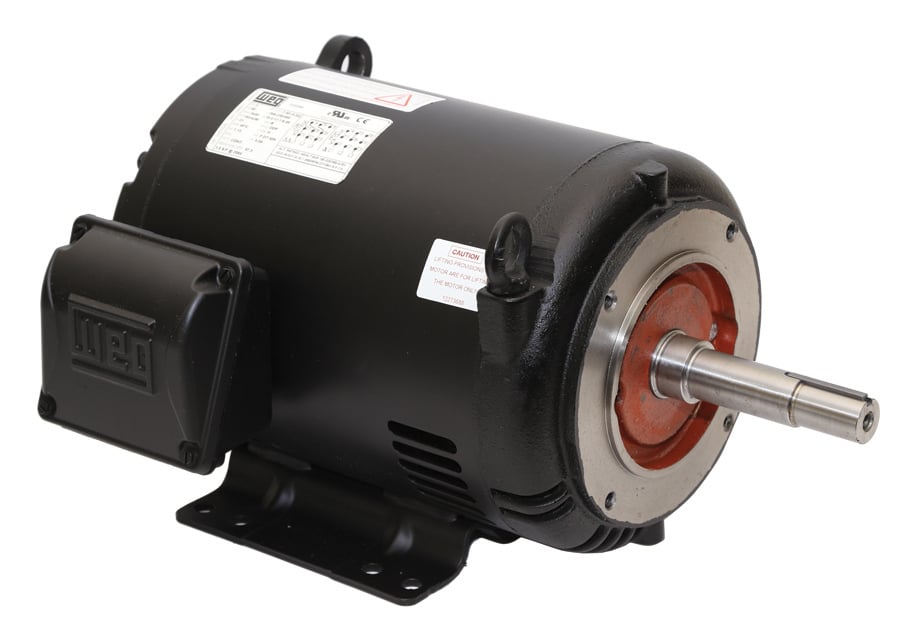

Weg 00158OT3E145JM-S 1.5HP 1760rpm 143/5JM Odp 3Ph Pump Motor

Product Description

The WEG 00158OT3E145JM-S 1.5HP Three Phase JM Pump Motor is designed for demanding applications where dirt and humidity are minimal. These motors provide maximum ventilation and heat dissipation. It is designed to meet NEMA closed couple requirements. The motor meets or exceeds all NEMA Premium requirements for energy efficiency.

• Inverter Rated 1000:1 VT
• NEMA Premium efficiency rating
• Durable rolled steel frame

Product Highlights

This motor features class F insulation, a stainless steel nameplate, and regreasable ball bearings. It is suitable for VFD operation as per NEMA MG1 part 31.4.4.2.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00158OT3E145JM-S

Technical Specifications

• Brand: WEG
• Application: Closed Coupled
• Output HP: 1.5
• Output KW: 1.1
• Output RPM: 1760
• Frame Size NEMA: 143/5JM
• Mount NEMA: C Face With Base
• Enclosure NEMA: ODP
• Voltage: 208-230/460 V
• Frequency (Hz): 60//50
• Motor Category: Close Coupled Pump Motor
• Motor Phase: 3 ph
• Synchronous Rpm: 1800 rpm
• Enclosure Type: ODP (Open Drip-Proof)
• Frequency Rating: 50/60 Hz
• Duty Condition Type: Continuous Duty
• Full Load Efficiency: 86.50 %
• Volts @ Frequency: 190 V @ 50 Hz; 380 V @ 50 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Standards Met: UL, CSA, CE
• Overall Length C Dimension: 14.49 in
• Service Factor: 1.15
• Frame Material: Rolled Steel
• Insulation Class: F
• IP Rating: 23
• Mounting Type: C-Face / Foot Mounted
• Product Type: Pump Motors
• Full Load Amp (FLA): 2.1
• Motor Enclosure Type: ODP - Open Drip Proof
• Motor Type: Premium Efficient
• Phase: 3
• Product Notes: Rolled Steel Frame - Cannot be modified with T Box on opposite side
• Quick Specs: 1.5HP 1800 3 60 230/460
• Speed (RPM): 1800
• HP: 1.5
• Hz: 60
• KW: 1.1
• Enclosure: ODP
• Frame: 143/5JM
• Frame Remarks: Close Coupled Pump
• Volts: 208/230/460
• Classification: JM-JP & Jet Pump
• Model: 12676960
• Replaces: 00158OP3E145JM
• Output: 1.5 HP
• Poles: 4
• Torque: 4.42 lb.ft
• Full Load Amps: 4.58-4.14/2.07 A
• Efficiency (100%): 86.5
• Power factor (100%): 0.77
• Insulation: F
• Noise: 52 dB(A)
• No load current: 2.40/1.20 A
• Locked rotor current (II/In): 8.7
• FL Amps @ High: 2.07
• FL Eff (%): 86.5
• C Dimension (in): 14.488
• kW: 1.1
• Voltage (V): 208-230/460
• AEGIS Ring Installed: No
• Construction: Rolled Steel
• Efficiency: NEMA Premium
• NEMA Frame: 143/5JM
• Mounting: Foot Mounted
• Motor Application: Pump Duty
• Voltage Rating: 230/460
• RPM: 1800 rpm
• Enclosure Designation: ODP - Open Drip Proof
• Input Phase: Three Phase
• Weight: 48.101 LB
