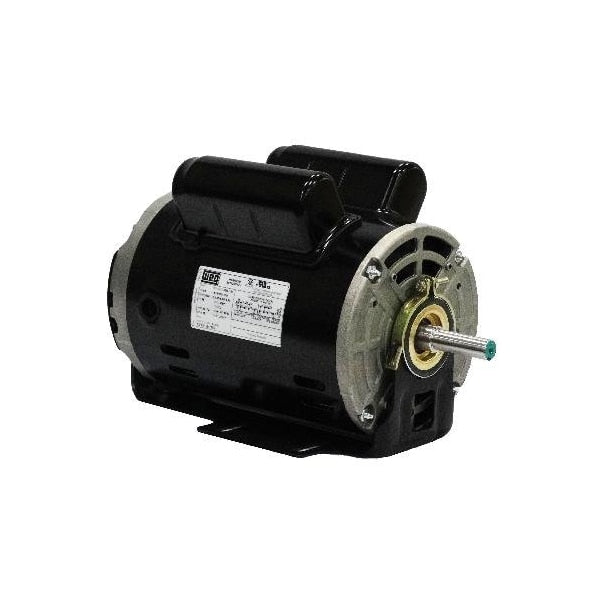

WEG 00158OT1BRBO56-S MOTOR 1.5HP 4P 56H WCA2 ROLLED STEEL SIN

Product Description

The WEG ELECTRIC CORP MOTOR 1.5HP 4P 56H WCA2 ROLLED STEEL SIN, MPN 00158OT1BRBO56-S, is designed for continuous-duty general purpose applications. It operates at 1.5 horsepower and is compatible with 115/208/230 VAC, delivering reliable performance across various environments.

• Voltage range: 115/208/230 VAC
• Speed: 1745 RPM
• Temperature range: -20 to 40 degrees Celsius

Product Highlights

This motor features an open drip-proof enclosure and is equipped with a resilient base for mounting. It has a service factor of 1.15 and operates on a single phase. The ball bearing design provides durability and smooth performance.

Product Information

Standard Information

• Brand: WEG ELECTRIC CORP
• MPN: 00158OT1BRBO56-S

Technical Specifications

• Amperage Rating: 13.6/7.52 to 6.8 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Dimensions: 13.583 inches in length
• Enclosure Type: Open Drip-Proof
• Frame: 56H
• Frequency Rating: 60 Hz
• Horsepower: 1.5 hp
• Insulation Class: Class F
• Material: Rolled Steel
• Mounting Type: Resilient Base
• Phase: 1 ph
• Rotation: CW/CCW
• Service Factor: 1.15
• Speed: 1745 RPM
• Temperature Rating: -20 to 40 degrees Celsius
• Torque Rating: 4.45 ft-lb
• Manufacturer: WEG ELECTRIC CORP
