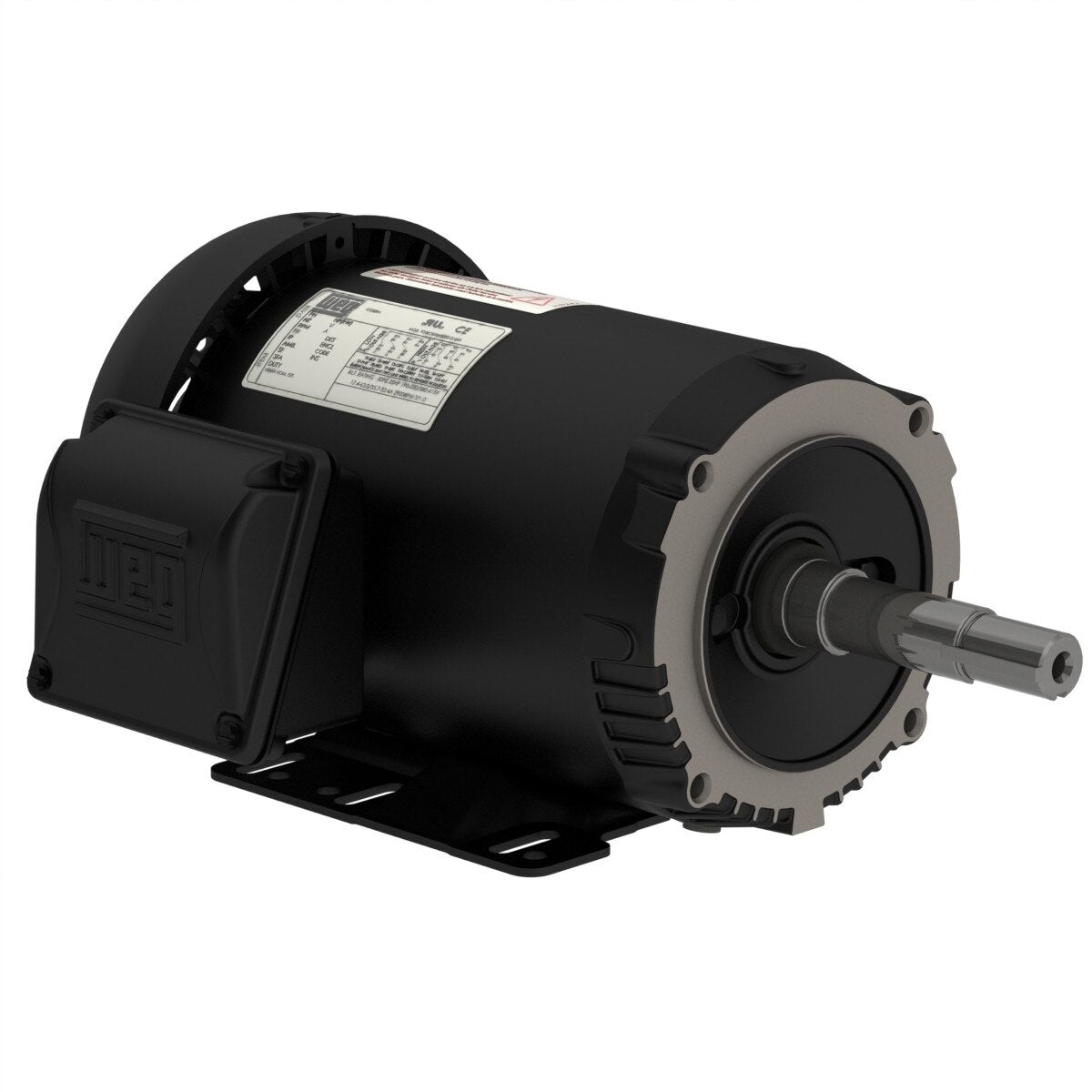

Weg 00158ET3E145JM-S 1.5 hp 1800 rpm TEFC 143/5JM frame 230/460 Volts

Product Description

The WEG 00158ET3E145JM-S is a 1.5 HP three-phase JM pump motor designed for high performance and maximum energy efficiency. This motor features a TEFC enclosure, a rolled steel frame, and operates at 1800 RPM with a voltage of 230/460V. It is suitable for close-coupled pump applications and is NEMA Premium efficient.

• Inverter Rated 1000:1 VT
• NEMA Premium efficiency rating
• Durable steel rolled frame

Product Highlights

This WEG motor is ideal for industrial applications requiring a reliable and energy-efficient motor. It is designed for durability and optimal performance.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00158ET3E145JM-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 1.5
• Kw [Specifications]: 1.1
• FRAME [Specifications]: 143/5JM
• VOLTAGE [Specifications]: 230/460
• Nameplate RPM [Specifications]: 1800
• Frame Material [Specifications]: ROLLED STEEL
• Full Load Amps [Specifications]: 2
• Overall Length [Specifications]: 16.102
• Nominal Efficiency [Specifications]: 86.5
• Motor Mounting Type [Specifications]: FOOT
• Motor Service Factor [Specifications]: 1.15
• Motor Enclosure Design [Specifications]: TEFC
• Application: Closed Coupled
• Output HP: 1.5
• Output KW: 1.1
• Output RPM: 1750//1420
• Frame Size NEMA: 143/5JM
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 230/460//190-220/380-415
• Motor Category: Close Coupled Pump Motor
• Motor Phase: 3 ph
• Motor Horsepower: 1-1/2 hp
• Synchronous Rpm: 1800 rpm
• Motor Supply Voltage: 190/380//208-230/460 V
• Frame Size: 143/5JM
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frequency Rating: 50/60 Hz
• Duty Condition Type: Continuous Duty
• Full Load Efficiency: 86.50 %
• Volts @ Frequency: 190 V @ 50 Hz; 380 V @ 50 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Standards Met: UL, CSA, CE
• Overall Length C Dimension: 15.71 in
• Service Factor: 1.15
• Insulation Class: F
• IP Rating: 55
• Mounting Type: C-Face / Foot Mounted
• Product Type: Pump Motors
• Brand: WEG
• Series: W01 CCP (Close Coupled Pump)
• Frame: 143/5JM (JM Style)
• Shaft Grounding Protection: None
• Phase: Three Phase
• Output: 1.5 HP
• Poles: 04
• Frequency: 60 Hz
• Rated speed: 1750 rpm
• Slip: 2.78 %
• Full Voltage - No Cables: 208-230/460//190-220/380-415 V
• Rated Current: 4.04/2.02 A
• LR Amperes: 33.1/16.6 A
• LRC: 8.2x(Code K)
• No Load Current: 2.17/1.08 A
• Rated Torque: 4.50 ft.lb
• Locked Rotor Torque: 270 %
• Breakdown Torque: 300 %
• Moment of Inertia: 0.1101 sq.ft.lb
• Design: B
• Locked Rotor Time: 37s (cold) 21s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Degree of Protection: IP55
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Mounting: F-1
• Rotation Direction: Both
• Noise Level: 52.0 dB(A)
• Starting Method: -
• Enclosure Material: Steel Plate
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6206
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6203
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 4:1
