Product Description

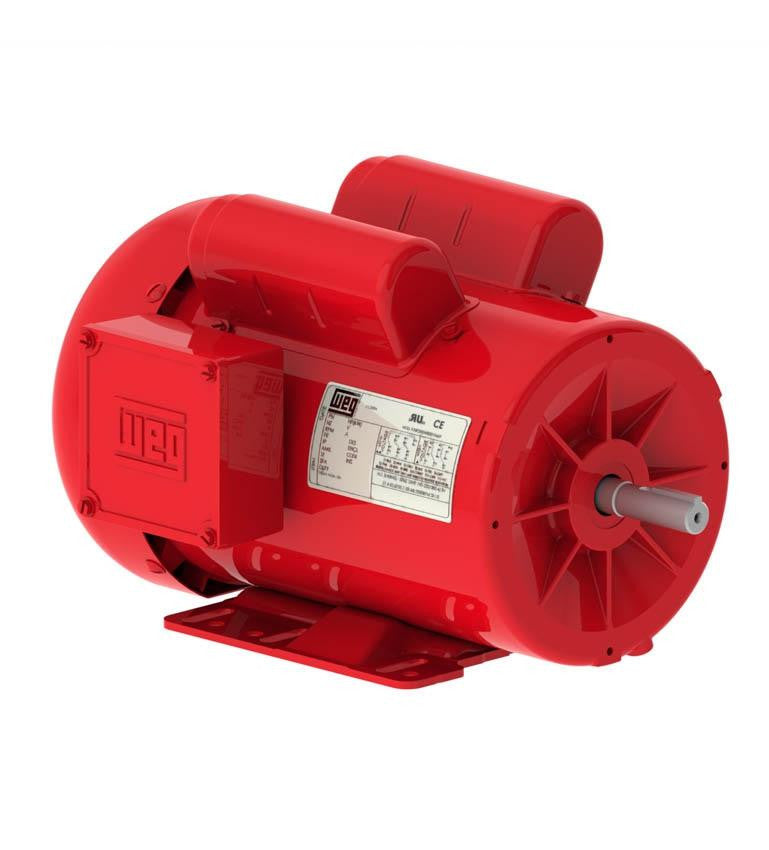

The WEG 00158ES1RFD56H-S motor is suitable for applications requiring robustness and high performance. This W01 rolled steel single-phase motor features good thermal performance and easy installation. With its high starting torque, it is well-suited for heavy starting loads. Designed for harsh farm conditions, this TEFC motor includes manual reset overload protectors and V-ring shaft seals.
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 115/230 V
- Degree of Protection IP55
Product Highlights
This WEG motor is designed for robustness, high performance, and heavy starting loads, making it ideal for farm applications.
Product Information
Standard Information
-
Brand: WEG
-
Manufacturer Part Number: 00158ES1RFD56H-S
Technical Specifications
-
Standard: NEMA MG-1
-
Frequency: 60 Hz
-
Voltage: 115/230 V
-
Number of poles: 4
-
Degree of Protection: IP55
-
Synchronous speed: 1800 rpm
-
Output rating: 1.5 HP
-
Mounting: Foot-Mounted, F-1
-
Flange: Without
-
Terminal box : Left position
-
Enclosure: IC411 - TEFC Totally (Enclosed Fan Cooled)
-
Application: Farm Duty
-
Output KW: 1.1
-
Output RPM: 1745
-
Frame NEMA: 56H
-
Mount NEMA: Base Mount
-
Enclosure NEMA: IC411 - TEFC
-
Enclosure IEC: IP55
-
Model: 00158ES1RFD56H-S
-
Phase: Single-Phase
-
Power: 1.5 HP
-
Base RPM: 1800
-
Frame: 56H
-
Construction: Rolled Steel
-
Motor Type: TEFC, Farm Duty
-
All - Specific Ratings: IP55
-
RPM: 1800
-
Series: W01 Rolled Steel
-
All - Voltage: 120/240VAC
-
Rated Voltage: 115/230 V
-
Rated Current: 17.4/8.70 A
-
Rated Speed: 1750 rpm
-
Rated Torque: 4.44 ft.lb
-
No-Load Current: 11.8/5.90 A
-
Starting Method: Direct on Line
-
Frame Material: Rolled Steel
-
Insulation Class: F
-
Temperature Rise: 80 K
-
Service Factor: 1.15
-
Rotation: Both (CW and CCW)
-
Shaft Diameter: 5/8\" Keyed
-
Shaft Length: 2-1/4\"
-
Hz: 60
-
Output HP: 1.5 HP
-
Full Load Amps: 15.0/7.48 A
-
Locked rotor current (II/In): 8.0
-
Locked Rotor Torque: 250 %
-
Break Down Torque: 270 %
-
Efficiency (%): 69.0
-
Power factor (%): 0.68
-
Inertia: 0.14262 sq.ft.lb
-
L.R. Time: 8 s
