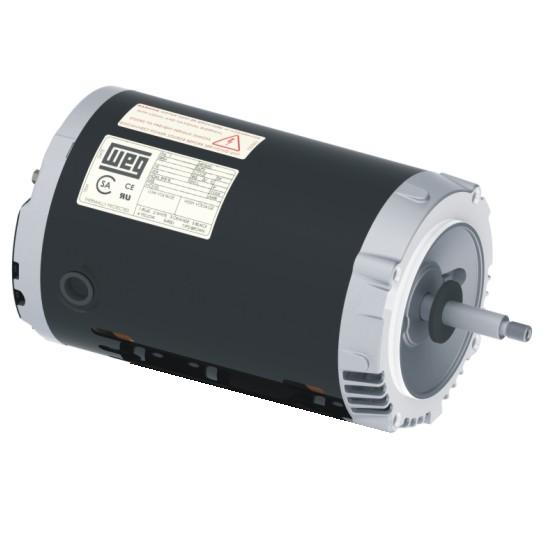

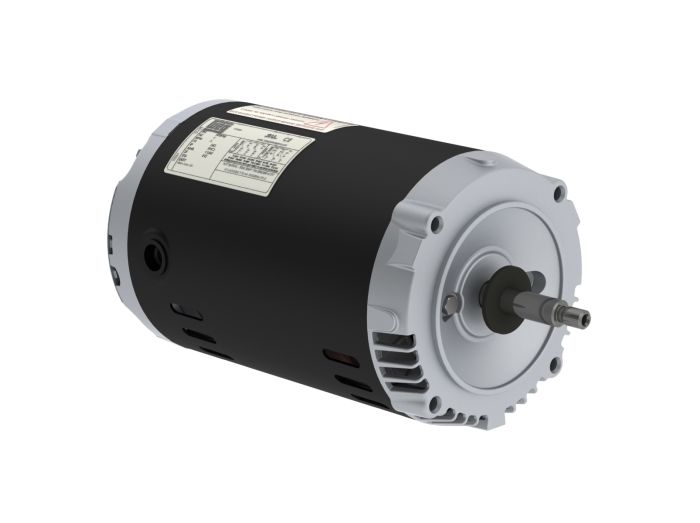

Weg 00156OS3EJPR56J-S Jet Pump Motor 1.5HP 3460RPM 56J

Product Description

The WEG 00156OS3EJPR56J-S is a 1.5HP three-phase jet pump motor designed for commercial applications. This motor features the torque and durability needed for demanding environments. It is available in a 56J frame size with an ODP enclosure. Operates at 3460 RPM and is suitable for voltages of 230/460//190-220/380-415 and frequencies of 60//50 Hz.

• 5/8" Threaded output shaft
• Stainless steel shaft end
• C-Face mounting provisions without base

Product Highlights

This WEG jet pump motor provides reliable power for various pumping applications. It features a robust design and is suitable for continuous duty.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00156OS3EJPR56J-S

Technical Specifications

• Brand: WEG
• Application: Jet Pump
• Output HP: 1.5
• Output KW: 1.1
• Output RPM: 3460
• Frame Size NEMA: 56J
• Mount NEMA: C Face No Base
• Enclosure NEMA: ODP
• Voltage: 230/460//190-220/380-415
• Frequency (Hz): 60//50
• Motor Category: Jet Pump Motor
• Motor Phase: 3 ph
• Synchronous Rpm: 3600 rpm
• Motor Supply Voltage: 208-230/460 V
• Enclosure Type: ODP (Open Drip-Proof)
• Frequency Rating: 60 Hz
• Duty Condition Type: Continuous Duty
• Full Load Current: 4.66–4.22 / 2.11 A
• Full Load Efficiency: 77.00 %
• Base RPM: 3460 rpm
• Motor Poles: 2-pole
• Volts @ Frequency: 208-230 / 460 V @ 60 Hz
• Standards Met: CE, CSA, UL
• Overall Length C Dimension: 11.61 in
• Type Of Bearing: Ball
• NEMA Design Class: A
• Service Factor: 1.30
• Frame Material: Rolled Steel
• Insulation Class: F
• IP Rating: 21
• Applications: Jet Pumps, Pumps
• Mounting Type: Foot Mounted
• Product Type: Pump Motors
• Frame: 56J
• Frame Remarks: Round Body
• Phase: 3
• Manufacturer: WEG Electric
• Classification: JM-JP & Jet Pump
• Model: 12676610
• Replaces: 00156OS3EJPR56J
• Torque: 2.25 lb.ft
• Efficiency (100%): 77.0
• Power factor (100%): 0.85
• Noise: 62 dB(A)
• No load current: 2.20/1.10 A
• Locked rotor current (II/In): 6.8
• FL Amps @ High: 2.16
• FL Eff (%): 77.0
• C Dimension (in): 11.614
• Description: 1.5HP 3600 3 60 208-230/460, J2
• Type: General Purpose
• Horsepower: 1-1/2 hp
• Speed: 3,600 RPM
• RPM: 3,600 RPM
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Mounting: Footless
• Current Rating: 2.16 A
• Composition: Steel
