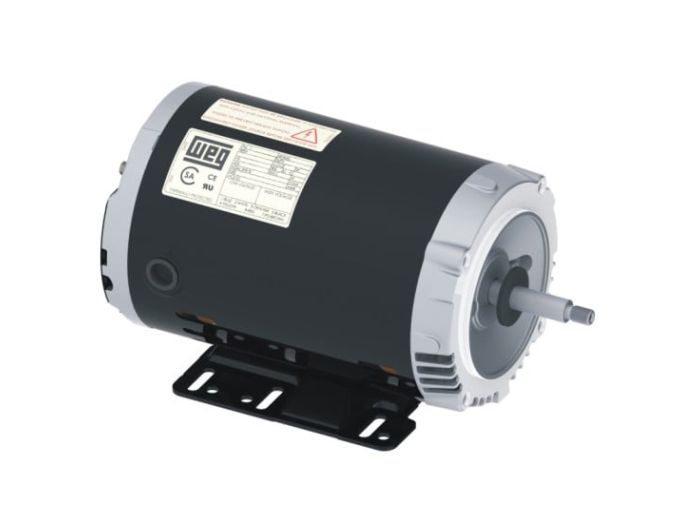

Weg 00156OS3EJP56J-S Motor, 1.5 HP, 3600 RPM, ODP, 56J Frame, 208-230/460 Volts

Product Description

The WEG 00156OS3EJP56J-S is a 1.5 HP motor with a speed of 3600 RPM and an ODP enclosure. This three-phase jet pump motor is designed for tough commercial applications. It features a 56J frame and operates at 208-230/460 Volts. Suitable for general-purpose use and foot mounting.

• 5/8" Threaded output shaft
• Stainless steel shaft end
• C-Face mounting provisions with base

Product Highlights

Durable WEG motor for jet pump applications, featuring a robust design and reliable performance.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00156OS3EJP56J-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 1.5
• Kw [Specifications]: 1.1
• FRAME [Specifications]: 56J
• VOLTAGE [Specifications]: 208-230/460
• Nameplate RPM [Specifications]: 3600
• Frame Material [Specifications]: ROLLED STEEL
• Full Load Amps [Specifications]: 2.1
• Overall Length [Specifications]: 11.614
• Nominal Efficiency [Specifications]: 77
• Motor Mounting Type [Specifications]: FOOT
• Motor Service Factor [Specifications]: 1.3
• Motor Enclosure Design [Specifications]: ODP
• Brand: WEG
• Application: Jet Pump
• Output HP: 1.5
• Output KW: 1.1
• Output RPM: 3460
• Frame Size NEMA: 56J
• Mount NEMA: C Face With Base
• Enclosure NEMA: ODP
• Voltage: 230/460//190-220/380-415
• Frequency (Hz): 60//50
• Manufacturer Part Number: 00156OS3EJP56J-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Type: General Purpose
• Horsepower: 1-1/2 hp
• Speed: 3,600 RPM
• RPM: 3,600 RPM
• Phase: 3
• Frequency: 60 Hz
• NEMA Frame: 56J
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Mounting: Foot Mount
• Current Rating: 2.16 A
• Service Factor: 1.3
• Composition: Steel
• Output Horsepower: 1.5 hp
• Output Speed: 3460 RPM
• Input Voltage: 208-230/460 V
• Enclosure: ODP
• Mounting Type: Foot
