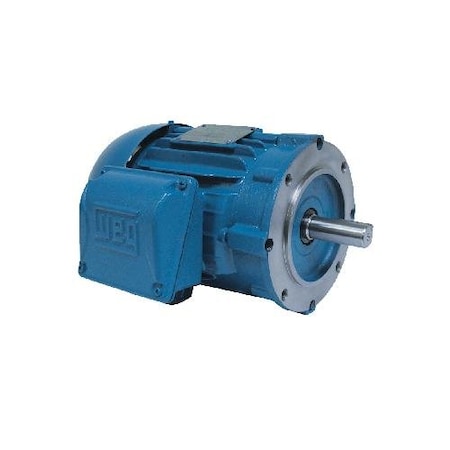

Weg 00156ET3EJPR56J-S 1.5 HP 3600 RPM TEFC 56J FRAME 230/460 Volts

Product Description

The WEG 00156ET3EJPR56J-S is a 1.5 HP three-phase jet pump motor designed for commercial applications. This motor features a new electrical and mechanical design for cooler operation and longer life. It is easy to install and maintain, suitable for environments with dirt, dust, and moisture, and ideal for indoor and outdoor use.

• Nema Premium Efficiency
• 5/8" Threaded output shaft
• Stainless steel shaft end

Product Highlights

This TEFC jet pump motor is designed to meet pump requirements and operates efficiently in harsh environments.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00156ET3EJPR56J-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 1.5
• Kw [Specifications]: 1.1
• FRAME [Specifications]: 56J
• VOLTAGE [Specifications]: 230/460
• Nameplate RPM [Specifications]: 3600
• Frame Material [Specifications]: ROLLED STEEL
• Full Load Amps [Specifications]: 1.9
• Overall Length [Specifications]: 13.614
• Nominal Efficiency [Specifications]: 84
• Motor Mounting Type [Specifications]: FOOTLESS
• Motor Service Factor [Specifications]: 1.15
• Motor Enclosure Design [Specifications]: TEFC
• Application: Jet Pump
• Output HP: 1.5
• Output KW: 1.1
• Output RPM: 3520
• Frame Size NEMA: 56J
• Mount NEMA: C Face No Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 208-230/460*
• Phase: 3
• Manufacturer: WEG
• Classification: JM-JP & Jet Pump
• Model: 14795606
• Replaces: 00156ES3EJPR56J-S
• Poles: 2
• Frequency: 60 Hz
• Torque: 2.21 lb.ft
• Full Load Amps: 4.14-3.74/1.87 A
• Efficiency (100%): 84.0
• Power factor (100%): 0.88
• Insulation: F
• Noise: 68 dB(A)
• No load current: 1.72/0.859 A
• Locked rotor current (II/In): 9.1
• Rated Output: 0.25 to 3 HP
• Number of Poles: 2 to 4
• Class F insulation (B temperature rise): Class F insulation (B temperature rise)
• Frame Sizes: W56J to 56HJ
• Rated voltage: 208-230/460 V
• IP55 enclosure: IP55 enclosure
• F1 foot mount as standard: F1 foot mount as standard
• Aluminum endshield and flange: Aluminum endshield and flange
• Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required: Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
• Double sealed ball bearings + slinger: Double sealed ball bearings + slinger
• Ambient temperature: -20 °C to +40 °C
• 1040/45 carbon steel shaft: 1040/45 carbon steel shaft
• Primary brand: WEG
• Order code / Manufacturer SKU: 00156ET3EJPR56J-S
• Manufacturer description: JET PUMP "JJ" FRAME - THREADED SHAFT - MOTOR 1.5HP 2P 56J WCF2 JET PU TRI
• Location of origin: Brazil
• Brand: WEG Electric Corp
