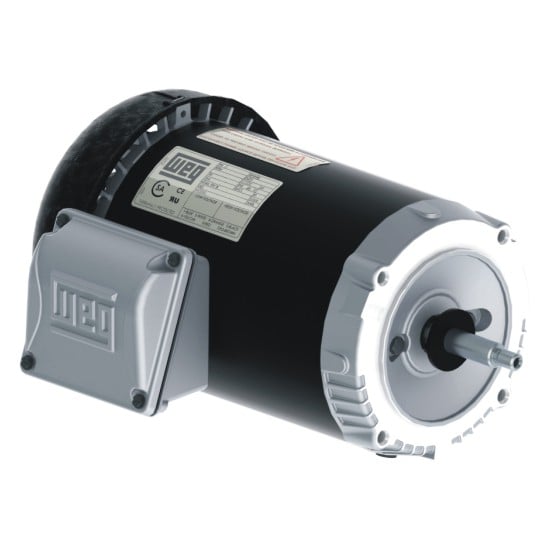

Weg 00156ET3EJP56J-S 1.5 hp, 3600 rpm, tefc, 56j frame

Product Description

The WEG 00156ET3EJP56J-S is a 1.5 HP motor with a speed of 3600 RPM and a TEFC enclosure. Designed for jet pump applications, this three-phase motor offers the torque and durability needed for demanding commercial use. It features a rolled steel frame and is suitable for environments with dirt, dust, and moisture.

• Nema Premium Efficiency
• 5/8" Threaded output shaft
• Stainless steel shaft end

Product Highlights

This WEG motor is designed to run cooler and last longer, making it easier to install and maintain.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00156ET3EJP56J-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 1.5
• Kw [Specifications]: 1.1
• FRAME [Specifications]: 56J
• VOLTAGE [Specifications]: 230/460
• Nameplate RPM [Specifications]: 3600
• Frame Material [Specifications]: ROLLED STEEL
• Full Load Amps [Specifications]: 1.9
• Overall Length [Specifications]: 13.614
• Nominal Efficiency [Specifications]: 84
• Motor Mounting Type [Specifications]: FOOT
• Motor Service Factor [Specifications]: 1.15
• Motor Enclosure Design [Specifications]: TEFC
• Application: Jet Pump
• Output HP: 1.5
• Output KW: 1.1
• Output RPM: 3520
• Frame Size NEMA: 56J
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 230/460//190-220/380-415
• Volts: 208-230/460*
• Phase: 3 ph
• Manufacturer: WEG
• Classification: JM-JP & Jet Pump
• Model: 13484342
• Replaces: 00156ES3EJP56J
• Rated Output: 0.25 to 3 HP
• Number of Poles: 2 to 4
• Insulation Class: F insulation (B temperature rise)
• Frame Sizes: W56J to 56HJ
• Rated voltage: 208-230/460 V
• Frequency: 60 Hz
• IP Rating: IP55 enclosure
• Mounting: F1 foot mount as standard
• Endshield and Flange Material: Aluminum endshield and flange
• Shaft Material: 1040/45 carbon steel shaft
• Ambient temperature: -20 °C to +40 °C
• Motor Phase: 3 ph
• Motor Horsepower: 1-1/2 hp
• Synchronous Rpm: 3600 rpm
• Motor Supply Voltage: 190-220/380-415 V, 230/460 V
• Frame Size: 56J
• Enclosure Type: TEFC
• Product Type: Pump Motors
