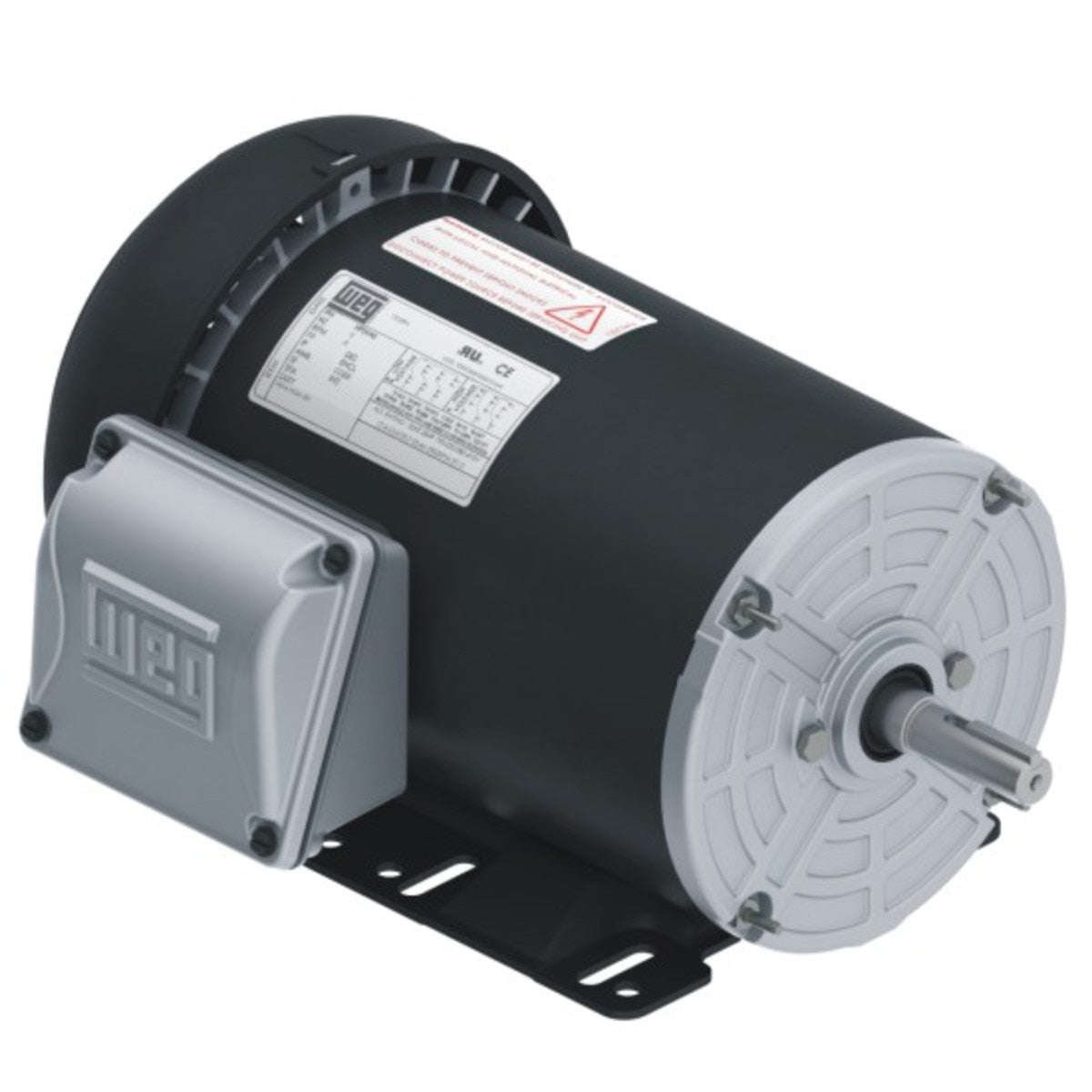

Weg 00156ET3E56C-S AC Motor, NEMA Premium Efficiency, 1.5 HP

Product Description

The WEG 00156ET3E56C-S AC motor is a NEMA Premium Efficiency, general purpose motor. This TEFC motor features a 56C frame, rolled steel construction, and a C-Face with foot mount. It operates on three-phase power at 3600 RPM and 208-230/460V, with a rated current of 4.2-3.8/1.9 FLA and 1.5 HP output.

• NEMA Premium Efficiency
• TEFC (Totally Enclosed Fan Cooled)
• C-Face w/foot Mount

Product Highlights

This WEG motor is designed for general purpose applications requiring premium efficiency and reliable performance.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00156ET3E56C-S
• Country of Origin: Brazil

Technical Specifications

• Phase: Three Phase
• Frame: 56
• Output: 1.5 HP
• Poles: 02
• Frequency: 60 Hz
• Rated speed: 3520 rpm
• Slip: 2.22 %
• Full Voltage - No Cables: 208-230/460//190-220/380-415 V
• Rated Current: 3.74/1.87 A
• LR Amperes: 34.0/17.0 A
• LRC: 9.1x(Code L)
• No Load Current: 1.72/0.859 A
• Rated Torque: 2.24 ft.lb
• Locked Rotor Torque: 229 %
• Breakdown Torque: 300 %
• Insulation Class: F
• Service Factor: 1.15
• Moment of Inertia: 0.1023 sq.ft.lb
• Design: B
• Locked Rotor Time: 30s (cold) 17s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Degree of Protection: IP55
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Mounting: F-1
• Rotation Direction: Both
• Noise Level: 68.0 dB(A)
• Starting Method: -
• Enclosure Material: Steel Plate
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6204
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6202
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 5:1
• Brand: WEG
• MPN: 00156ET3E56C-S
