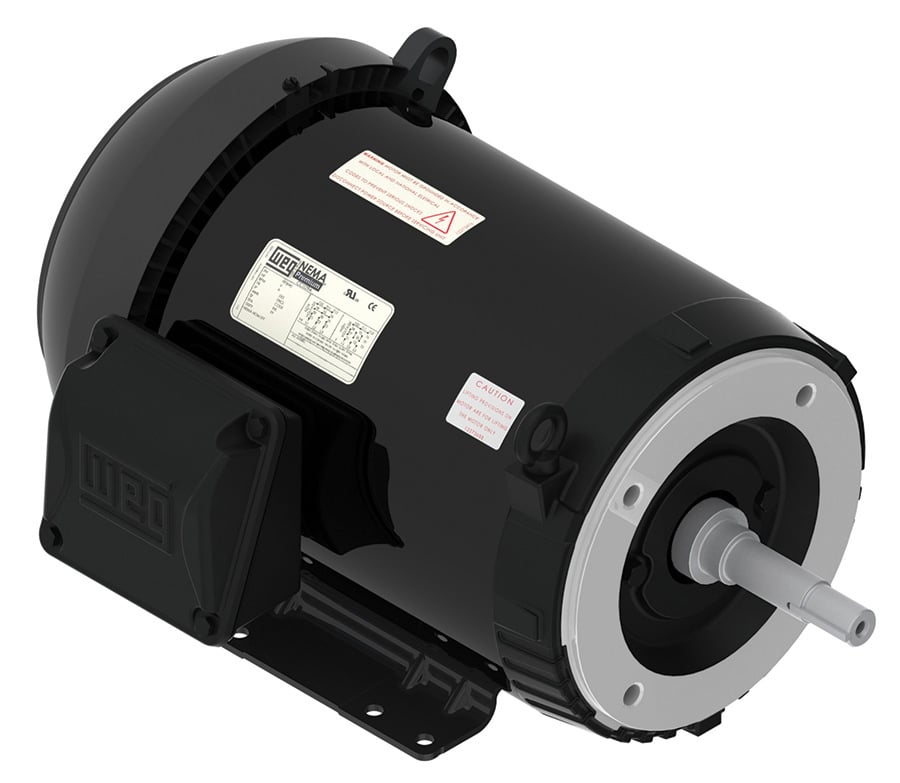

Weg 00156ET3E143JM-W22 1.5HP 3600 3 60 230/460 Close C-TEFC REPLACEMENT

Product Description

The WEG 00156ET3E143JM-W22 is a 1.5HP motor operating at 3600 RPM. This three-phase, 60 Hz motor is designed for 230/460 voltage applications and features a close-coupled pump design with a TEFC enclosure and 143JM frame. It is suitable for industrial and commercial pumping applications and can operate in moist or dusty environments.

• Stainless steel nameplate laser etched with high contrast background
• Regreasable bearings
• Gasketed conduit box

Product Highlights

Designed for maximum energy efficiency and low cost of ownership. Features an improved cooling system, solid feet, and reduced vibration and noise.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00156ET3E143JM-W22
• Country of Origin: United States

Technical Specifications

• Output: 1.5 HP
• Poles: 2
• Frequency: 60 Hz
• Torque: 2.23 lb. ft
• Voltage: 208-230/460 V
• Frame: 143JM
• RPM: 3,600 RPM
• Full Load Amps: 4.20-3.92/1.96 A
• Efficiency (100%): 84.0
• Power factor (100%): 0.84
• Insulation: F
• Noise: 68 dB(A)
• No load current: 1.50/0.750 A
• Locked rotor current (II/In): 8.9
• Service Factor: 1.25
• Horsepower: 1-1/2 hp
• Torque Rating: 2.23 ft-lb
• Variable Torque Speed Range: 1000:1
• Material: Cast Iron
• Amperage Rating: 4.20 to 3.92/1.96 A
• Type: Closed Couple Pump Continuous-Duty
• Shaft Size: 7/8 in Dia x 4-1/8 in L
• Insulation Class: Class F
• Bearing Type: Ball
• Temperature Rating: -20 to 40 deg C
• Rotation: CW/CCW
• Application Type: Jet Pump (JM/JP) Motors
• Phase: 3
• Speed: 3490 rpm
• Mounting Type: Footed
• Enclosure Type: Totally Enclosed Fan Cooled
• Enclosure: TEFC
• Volts: 208/230/460
• Manufacturer: WEG Electric
• Classification: JM-JP & Jet Pump
• Model: 12598478
• Replaces: 00156EP3E143JM-W22
• FL Amps @ High: 1.91
• FL Eff (%): 84.0
• C Dimension (in): 15.304
• Brand: WEG
• Current Type: AC
• IEC Frame Size: 143JM
• Rated Load (HP): 1.5
• Nominal Rated Input Voltage: 208-230/460
• MPN: 00156ET3E143JM-W22
• AC Phase: Three Phase
• Country of Origin: United States
• NEMA Frame: 143JM
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Mounting: Foot Mount
• Current Rating: 1.91 A
• Composition: Cast Iron
