Weg 00136ET3E143TC-W22 nema premium efficiency motor 1 hp 143/5tc

Brand: WEG
SKU: 00136ET3E143TC-W22
Availability: Out Of Stock
$416.28
$416.28
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

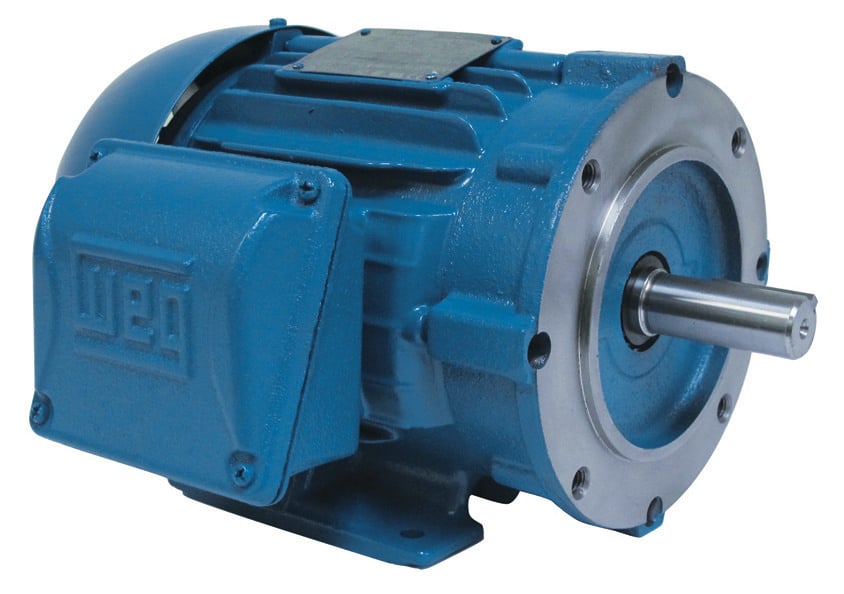

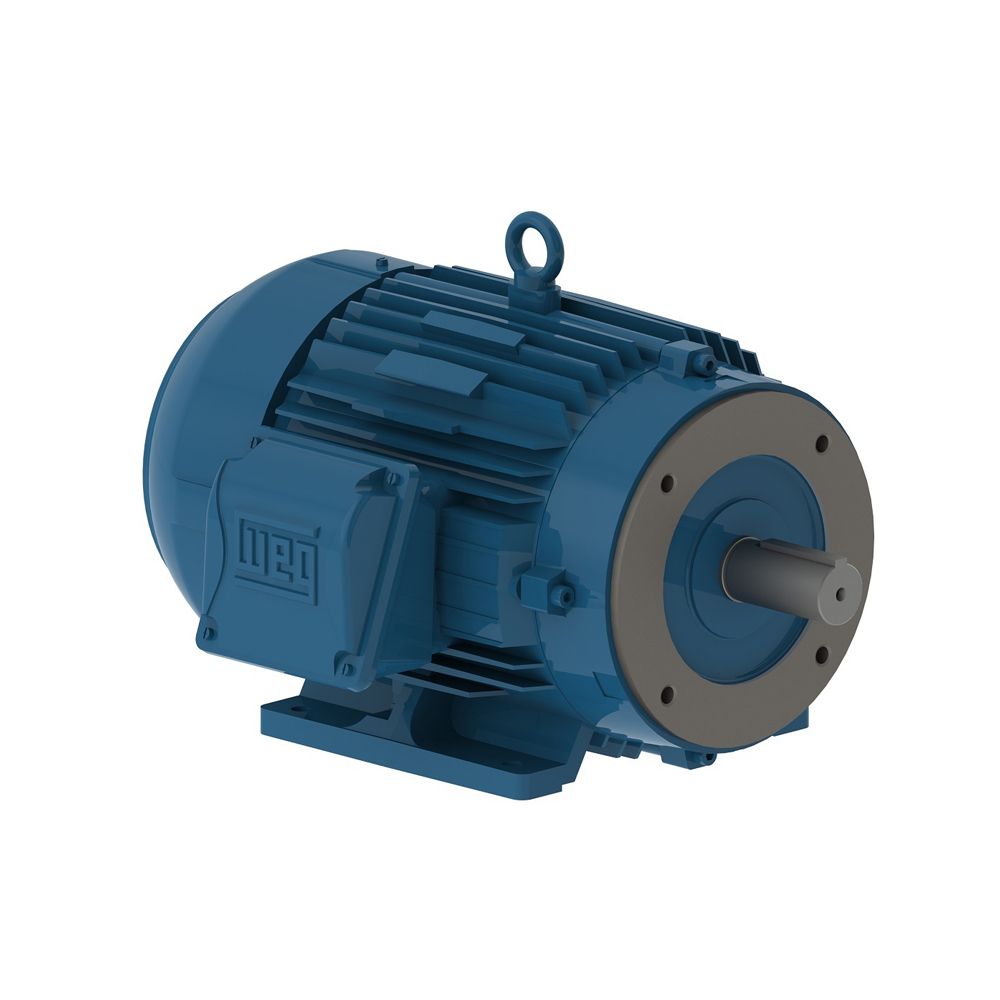

The WEG 00136ET3E143TC-W22 is a NEMA Premium efficiency motor with a cast iron frame suitable for industrial applications. With flexible mounting, solid feet, and lower noise levels, the W22 motors are perfectly suitable for a great variety of industrial applications. Complies with NEMA Premium efficiency level and carry CSA Certified for Division 2 on the Nameplate as standard.

  • NEMA Premium efficiency rating
  • Rated for IEEE45 and USCG 259 - Marine Duty
  • Suitable for VFD operation as per NEMA MG1

Product Highlights

This motor has a cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures.

Product Information

Standard Information

  • Brand: WEG
  • Manufacturer Part Number: 00136ET3E143TC-W22
Technical Specifications
NEMA MG-1
Standard
Frequency
60 Hz
Voltage
230/460//380 V
Number of Poles
2
Degree of Protection
IP55
Synchronous Speed
3600 rpm
Output Rating
1 HP
Mounting
Foot-mounted (F-1)
Flange
C
Terminal Box
Left position
Enclosure
IC411 - TEFC
Brand
WEG
Application
General Purpose
Output HP
1
Output KW
0.75
Output RPM
3500
Frame Size NEMA
143/5TC
Mount NEMA
C Face With Base
Enclosure NEMA
TEFC
Enclosure IEC
IP55
Alternate Part Number
12445698
Frame
143/5TC
Horsepower
1 hp
Motor Type
TEFC
Phase
Three Phase
All - Specific Ratings
IP55
RPM
3600
Series
Severe Duty
All - Voltage
230/460VAC
Rated Voltage
208-230/460 V
Rated Speed
3480 rpm
No Load Current
0.650-1.30/0.650 A
Rated Current
3.16-2.88/1.44 A
Rated Torque
1.49 ft.lb
Frame Material
Cast Iron
HP
1
Volts
208/230/460
Manufacturer
WEG
Classification
Three Phase
Model
12445698
Output
1 HP
Poles
2
Torque
1.49 lb.ft
Full Load Amps
3.16-2.88/1.44 A
Efficiency (100%)
81.5
Power factor (100%)
0.80
Insulation
F
Noise
68 dB(A)
Locked rotor current (II/In)
8.2
Service Factor
1.25
FL Amps @ High
1.43
FL Eff (%)
78.5
C Dimension (in)
13.346
Motor Phase
3 ph
Motor Horsepower
1 hp
Synchronous Rpm
3600 rpm
Motor Supply Voltage
190/380//208-230/460 V
Enclosure Type
TEFC (Totally Enclosed Fan Cooled)
Frequency Rating
50/60 Hz
Duty Condition Type
Continuous Duty
Mounting Type
C-Face / Foot
Full Load Current
1.43 A
Full Load Efficiency
78.50 %
Volts @ Frequency
190 V @ 50 Hz; 380 V @ 50 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
Description Keyword
1 hp
Overall Length C Dimension
13.35 in
IP Rating
55
Standards Met
UL, CSA, CE
Motor Category
General Purpose Motor
Product Type
General Purpose Motors
Flanges
Flange C
Condition
New
