Weg 00136ET3E143T-W22 1 HP 3600 RPM TEFC 143/5T

Product Description

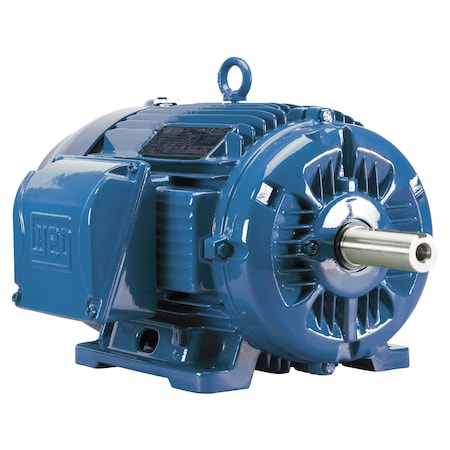

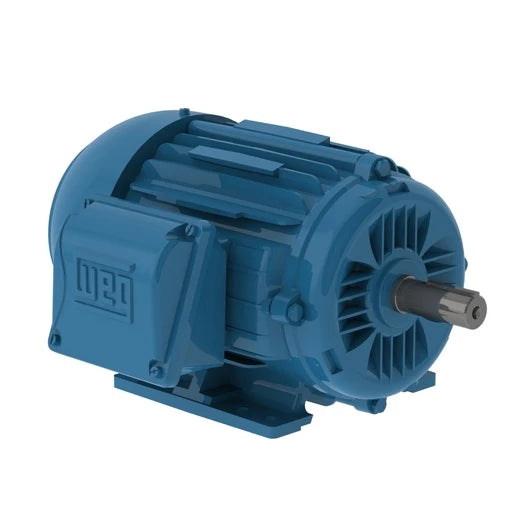

The WEG 00136ET3E143T-W22 is a 1 HP three-phase general-purpose cast iron motor. With a cast iron frame, flexible mounting, and solid feet, the W22 motors are suitable for various industrial applications. It has a totally enclosed fan-cooled (TEFC) enclosure with a NEMA Premium efficiency rating.

• NEMA Premium efficiency rating
• Rated for IEEE45 and USCG 259 - Marine Duty
• Suitable for VFD operation as per NEMA MG1

Product Highlights

This motor features a robust cast iron construction, optimized ventilation, and is inverter-duty rated, ensuring cooler operation and extended life.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00136ET3E143T-W22
• Country of Origin: Brazil

Technical Specifications

• HP: 1
• FRAME: 143/5T
• VOLTAGE: 230/460
• Mounting: FOOT
• Nameplate RPM: 3600
• Full Load Amps: 1.44
• Overall Length: 13.358
• Motor Enclosure Design: TEFC
• Country of Origin: Brazil
• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Output rating: 1 HP
• Flange: Without
• Terminal box: Left position
• Enclosure: IC411 - TEFC
• Application: General Purpose
• Output KW: 0.75
• Output RPM: 3500
• Frame Size NEMA: 143/5T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Horsepower: 1 hp
• Motor Type: Premium Efficient
• Phase: Three Phase
• All - Specific Ratings: IP55
• RPM: 3600
• Series: Severe Duty
• All - Voltage: 230/460VAC
• Rated Voltage: 208-230/460 V
• Rated Speed: 3480 rpm
• No Load Current: 0.650-1.30/0.650 A
• Rated Current: 3.16-2.88/1.44 A
• Rated Torque: 1.49 ft.lb
• Frame Material: Cast Iron
• Hz: 60
• KW: 0.75
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: 143/5T
• Service Factor: 1.25
• Speed (RPM): 3600
• Voltage: 230/460
