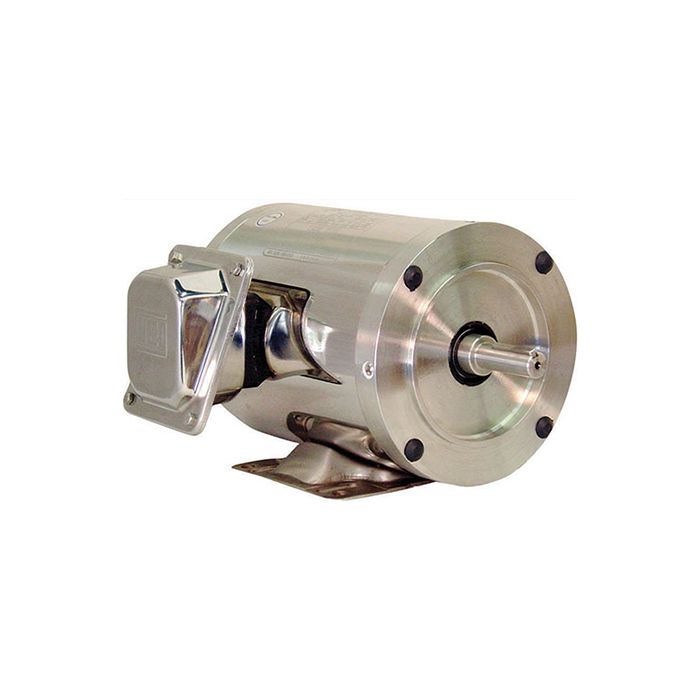

WEG 00118ET3ESS143TC 1HP 1800 3 60 208-230/460V Shark Nema-T

Product Description

WEG Electric Corp offers the 00118ET3ESS143TC 1HP Shark Nema-T motor. This motor operates at 208-230 or 460 volts and is ideal for various applications including food processing and pharmaceutical tasks. The motor is designed with a totally enclosed fan-cooled enclosure for optimal performance.

• IP55 rated for protection against dust and water.
• Class F epoxy insulation for durability.
• 3 phase operation for reliable performance.

Product Highlights

This motor is suited for general purpose applications and ensures efficient operation under demanding conditions.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• MPN: 00118ET3ESS143TC

Technical Specifications

• Horsepower: 1 hp
• Voltage Rating: 230/460 VAC
• Amperage Rating: 1.46 A
• Frequency Rating: 60 Hz
• Speed: 1800 rpm
• Frame: 143TC
• Phase: 3 ph
• Service Factor: 1.15
• Insulation Class: Class F
• Material: Stainless Steel
• Enclosure Type: Totally Enclosed Fan Cooled
• Mounting Type: C-Face Footed
• Special Features: Washdown Duty Motors
• Dimensions: 13.4 in L
