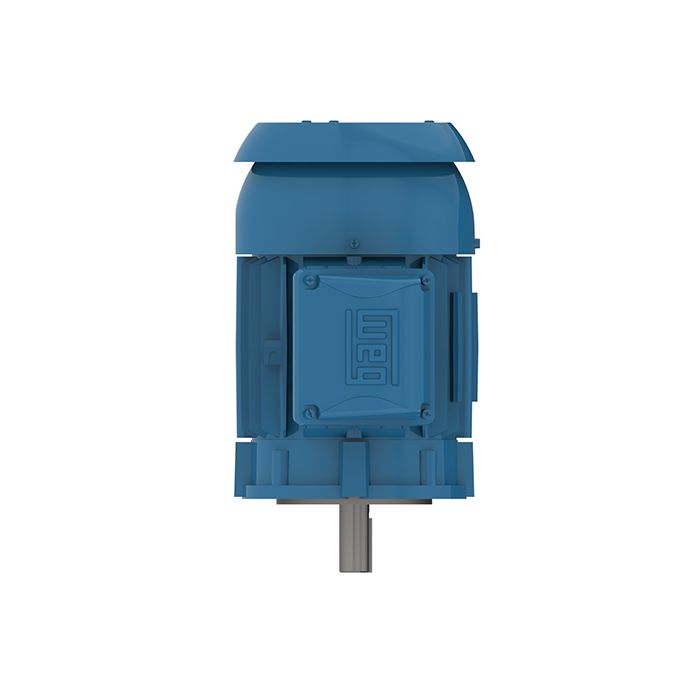

WEG 00118ET3ER143TC-W22 MOTOR 1HP 4P 143TC WFF2

Product Description

The WEG Electric Corp MOTOR 1HP 4P 143TC WFF2 is a continuous-duty AC motor designed for general purpose applications. It features a power rating of one horsepower and operates at voltages of two hundred eight, two hundred thirty, or four hundred sixty VAC, with performance at 1760 RPM. This motor is equipped with a totally enclosed fan cooled enclosure and a frame size of 143TC. Its dual rotation allows for both CW and CCW movements. Constructed from cast iron, this motor has a service factor of 1.25, making it reliable in demanding environments.

• Regreasable bearings
• All cast iron construction
• IP55 rating for dust and water resistance

Product Highlights

This motor is ideal for a variety of applications where durability and efficiency are essential.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Application Type: General Purpose AC Motors

Technical Specifications

• Horsepower: 1 hp
• Amperage Rating: 3.07 to 2.94/1.47 A
• Speed: 1760 RPM
• Phase: 3 ph
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 143TC
• Insulation Class: Class F
• Material: Cast Iron
• Temperature Rating: -20 to 40 deg C
• Constant Torque Speed Range: 20:1
