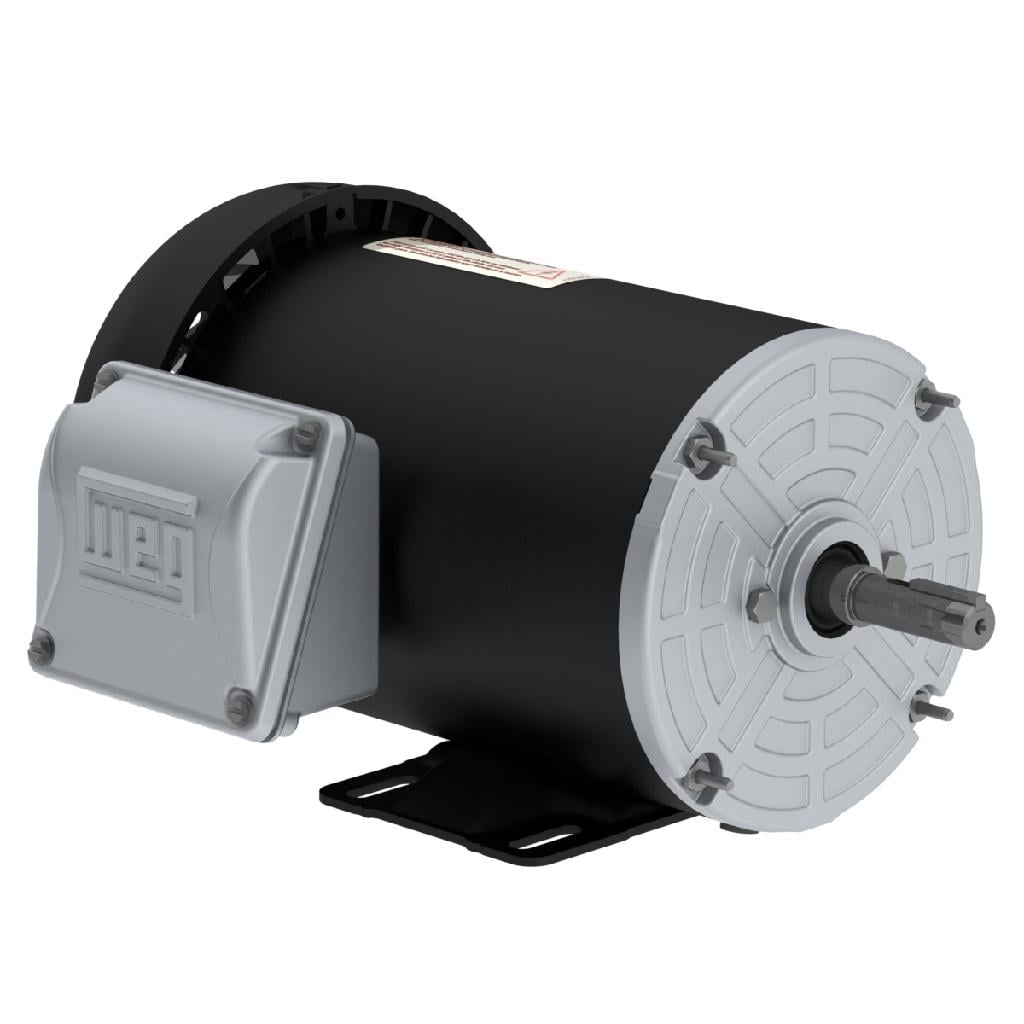

Weg 00118ET3E56-S Rolled Steel Premium Efficiency 1 HP 4P 56 3Ph Motor

Product Description

The WEG 00118ET3E56-S W01 motor is suitable for applications requiring robustness, low weight, and high performance. This rolled steel motor has good thermal performance and easy installation and maintenance. These versatile motors provide torque and durability for severe applications. It is designed for operating in environments where dirt, dust and moisture, on indoor and outdoor applications.

• NEMA MG-1 Standard
• 60//50 Hz Frequency
• 230/460//190-220/380-415 V Voltage

Product Highlights

This WEG motor features a steel plate frame and aluminum flange, providing torque and durability for demanding applications. Suitable for VFD operation as per NEMA MG1.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00118ET3E56-S

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Voltage: 230/460//190-220/380-415 V
• Number of poles: 4
• Degree of Protection: IP55
• Synchronous speed: 1800 rpm
• Output rating: 1 HP
• Mounting: F-1
• Flange: Without
• Terminal box: Left position
• Enclosure: TEFC
• Model: 00118ET3E56-S
• Phase: Three-Phase
• Power: 1 HP
• Base RPM: 1800
• Frame: 56
• Enclosure Rating: IP55
• Construction: Rolled Steel
• Application: General Purpose
• Output KW: 0.75
• Output RPM: 1765
• Frame Size NEMA: 56
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• HP: 1
• RPM: 1765
• Frame Remarks: Footed
• Volts: 208-230/460*
• Poles: 4
• Output: 1 HP
• Torque: 2.94 lb.ft
• Full Load Amps: 3.25-2.94/1.47 A
• Efficiency (100%): 85.5
• Power factor (100%): 0.75
• Insulation: F
• Noise: 52 dB(A)
• No load current: 1.78/0.890 A
• Locked rotor current (II/In): 8.6
