Product Description

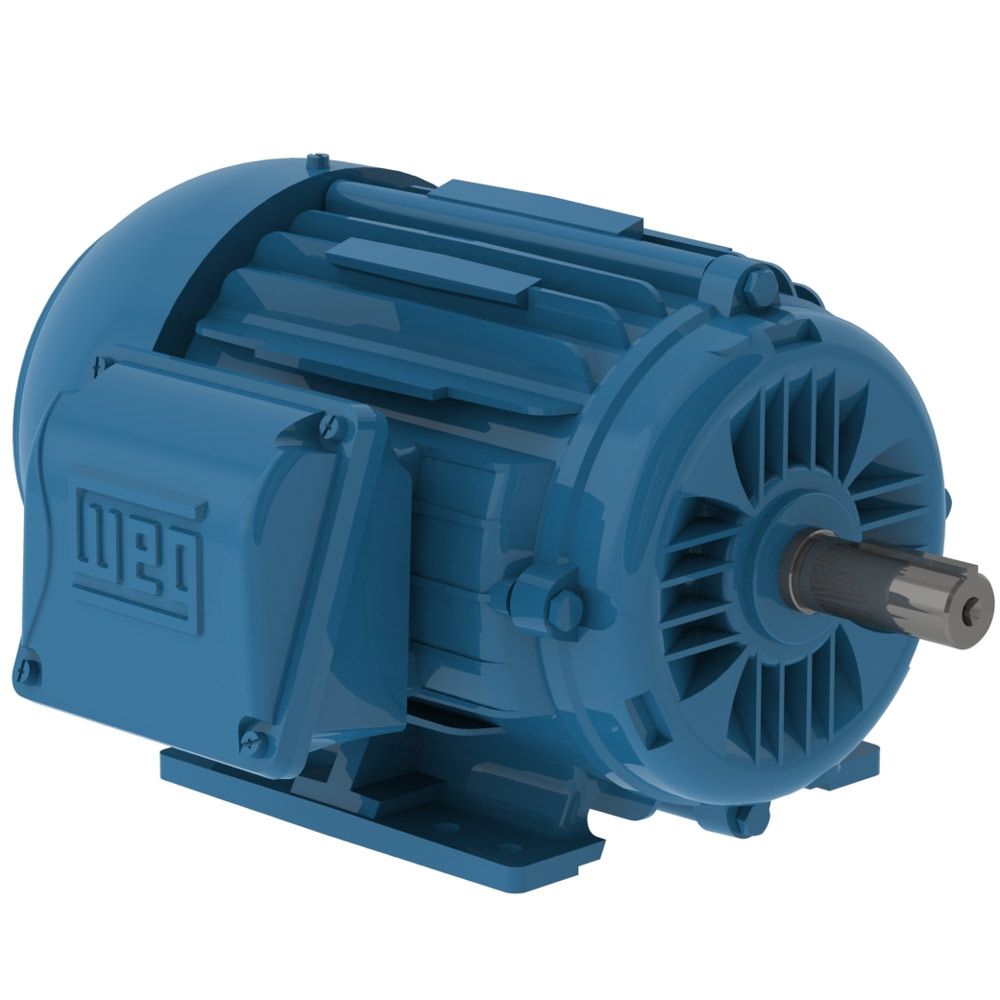

WEG 00118ET3E143T-S is a continuous-duty AC motor designed for a range of applications. This motor offers a power rating of one horsepower and operates at 208/230/460 VAC. It features a totally enclosed fan-cooled enclosure and delivers a speed of one thousand seven hundred sixty-five revolutions per minute. The WEG motor is built with a durable rolled steel frame and is suited for diverse industrial needs.
- Frame size: 143/5T
- Service factor: 1.15
- Torque rating: 2.94 ft-lb
Product Highlights
WEG motors are known for their reliability and capability in various environments, making them ideal for HVAC, plumbing, and industrial applications.
Product Information
Standard Information
-
Brand: WEG
-
MPN: 00118ET3E143T-S
Technical Specifications
-
Horsepower: 1 hp
-
Voltage Rating: 208/230/460 VAC
-
Phase: 3
-
Speed: 1765 rpm
-
Frequency Rating: 60 Hz
-
Amperage Rating: 3.25 to 2.94/1.47 A
-
Enclosure Type: Totally Enclosed Fan Cooled
-
Service Factor: 1.15
-
Temperature Rating: -20 to 40 deg C
-
Dimensions: 13.583 in L
-
Material: Rolled Steel
-
Bearing Type: Ball
-
Mounting Type: Footed
-
Rotation: CW/CCW
-
Torque Rating: 2.94 ft-lb
