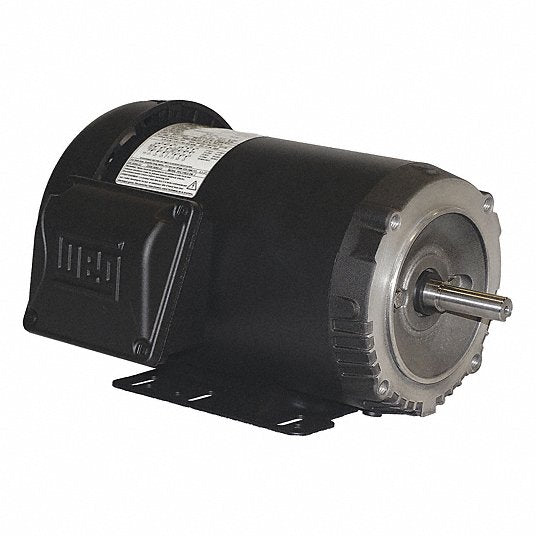

WEG 00112ET3E56C-S MOTOR 1HP 6P 56HC WCF2

Product Description

The WEG electric motor with MPN 00112ET3E56C-S is a reliable solution for general purpose applications. This motor operates at one horsepower and supports both 230/460 VAC power supply. It features a totally enclosed fan cooled design, ensuring a safe and efficient operation. The motor runs at a speed of twelve hundred RPM, making it suitable for a variety of tasks.

• Aluminum endshields
• C-Face footed mounting
• IP55 rating for protection against dust and water

Product Highlights

This motor is designed for durability and versatility in numerous applications. The robust construction includes rolled steel and a full ball bearing system for smooth operation.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Application Type: General Purpose AC Motors

Technical Specifications

• Horsepower: 1 hp
• Amperage Rating: 1.6 A
• Frequency Rating: 60 Hz
• Frame: 56HC
• Speed: 1200 rpm
• Insulation Class: Class F
• Service Factor: 1.15
• Shaft Size: 5/8 in Dia x 1-7/8 in L
• Rotation: CW/CCW
