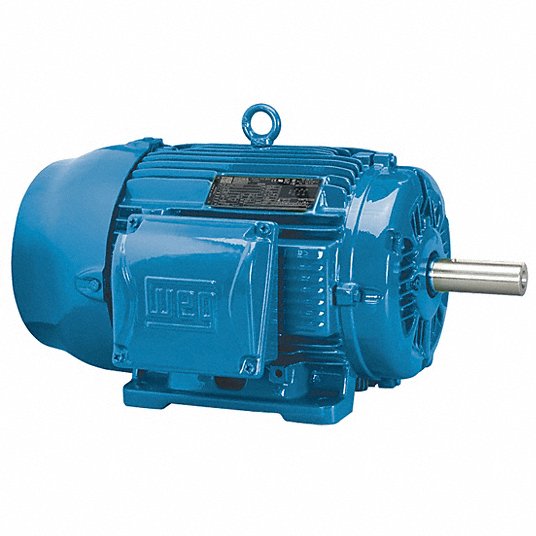

WEG 00112ET3E145T-W22 MOTOR 1HP 6P 143/5T WFF2

Product Description

The WEG Electric Corp MOTOR 1HP 6P 143/5T WFF2 (MPN: 00112ET3E145T-W22) is a reliable continuous-duty motor designed for various general-purpose applications.

• 1 horsepower with a speed of eleven hundred fifty revolutions per minute.
• Totally enclosed fan cooled enclosure for better durability.
• Footed mounting suitable for various installation requirements.

Product Highlights

This motor is ideal for applications requiring consistent performance and durability under various operating conditions.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Horsepower: 1 hp

Technical Specifications

• Amperage Rating: 3.82 to 3.46/1.73 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 20:1
• Dimensions: 13.358 in L
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 143/5T
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: Footed
• Number of Speeds: 1
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 7/8 in Dia x 2-1/4 in L
