WEBSTONE THD-X165W Pro-Pal 3/4 in. Female Union x Male x 12-1/4 in. Water Heater Supply Valve with Expansion Tank Service

Product Description

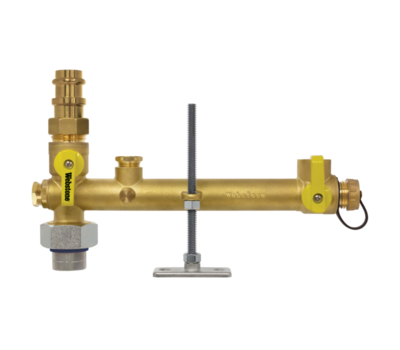

The WEBSTONE THD-X165W is a Pro-Pal water heater supply valve designed for efficient installation and functionality. This valve features a dielectric design for minimizing corrosion between two dissimilar metals. It includes a full port forged DZR brass ball valve and offers a dielectric union end for better connection to the water heater.

• Simplifies water heater installations
• Female dielectric union for connection to the water heater
• Built-in valves isolate the water supply

Product Highlights

This valve is compatible with three-quarter inch male expansion tanks up to five gallons and includes support hardware for easy installation.

Product Information

Standard Information

• Brand: WEBSTONE
• Catalog Number: THD-X165W

Technical Specifications

• Connection Type: FIP Union x MIP x FIP x Hose
• Maximum Working Pressure: 150 PSI
• Maximum Temperature: 180 degrees F
• Weight: 3.86 pounds
• UPC: 018394020856
• Plugged Ports: 1/2 inch for vacuum relief and 1/8 inch gauge port
• Box Quantity: 1 EA
