WEBSTONE THD-X041 Isolator with Drain Full Port Forged Brass Uni-Flange Ball Valve

Product Description

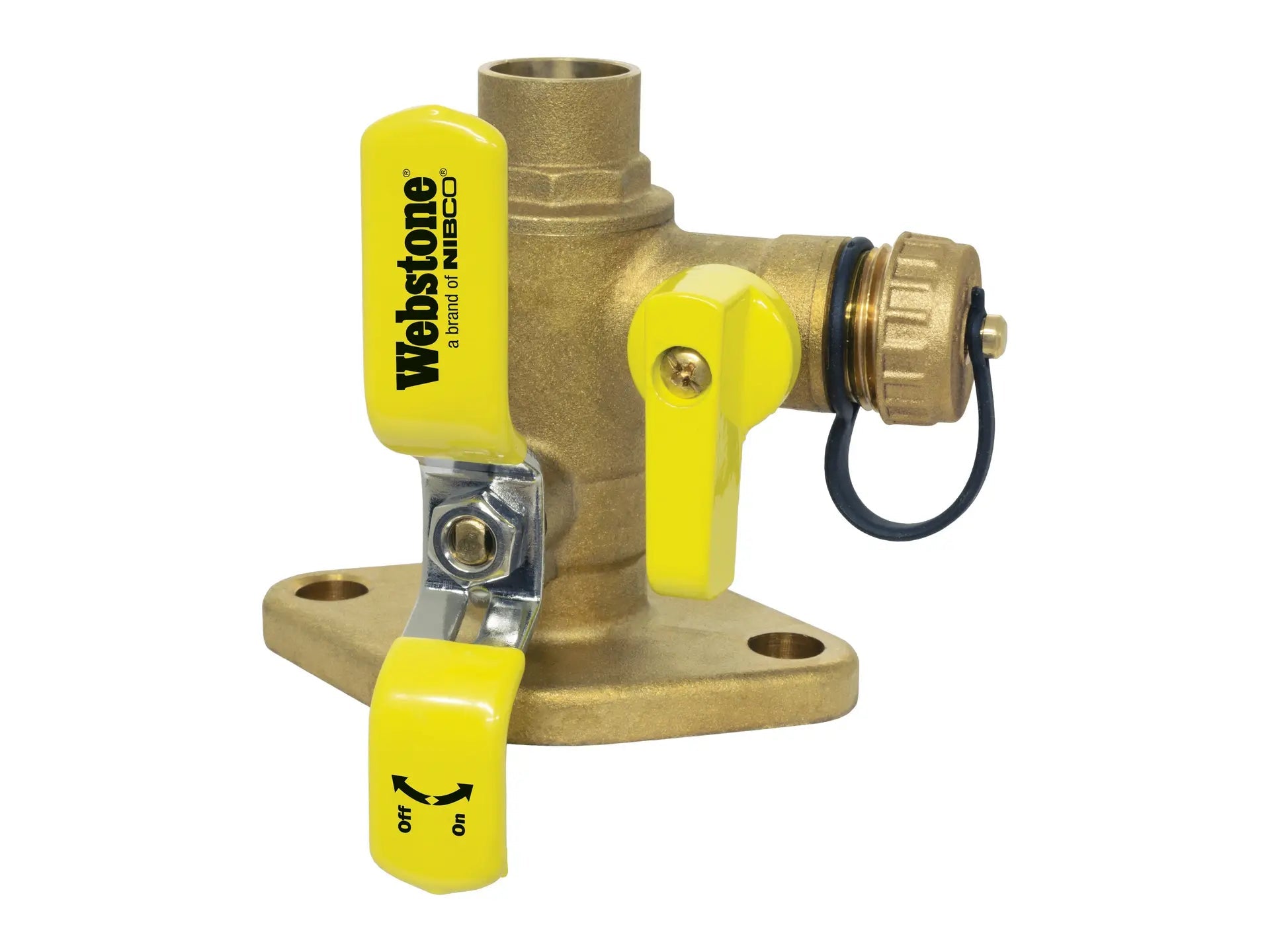

The WEBSTONE THD-X041 is a full port forged brass uni-flange ball valve designed to isolate a circulator pump. This product is efficient for preventing air from entering the system during pump replacement. Its construction features a hi-flow hose drain, adjustable packing glands, nuts, and bolts, consolidating multiple components into a single robust design.

• Isolates a circulator pump
• Innovative design combines multiple components into a single forged brass body
• Saves time, labor, and space

Product Highlights

This ball valve is suitable for use where isolation of a pump is necessary, enhancing system integrity during maintenance.

Product Information

Standard Information

• Manufacturer: Webstone
• Part Number: H-40414

Technical Specifications

• Model: THD-X041
• Series: H-X041
• Type of Valve: Ball
• Nominal Pipe Size: 1 inch x 1 inch
• End Connection Type: FIP x Flange
• Material: Brass
• Potable Water Code: Not LL Comp not intended for potable water
• UPC Code: 018394404144
• Length: 6.1 inches
• Width: 4.33 inches
• Height: 3.94 inches
