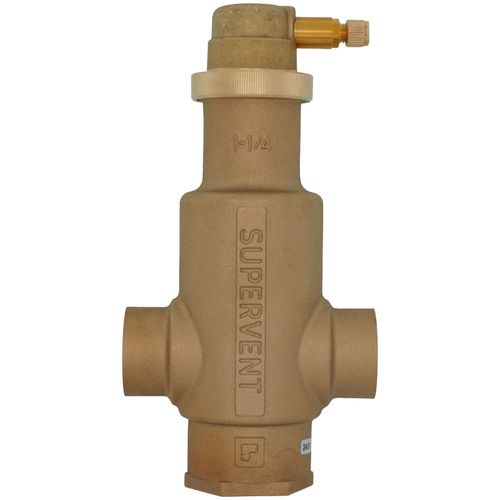

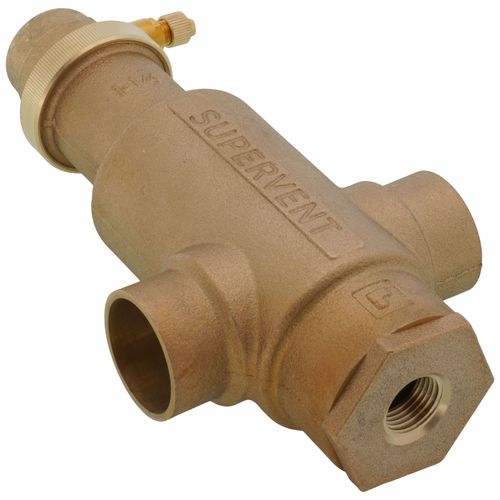

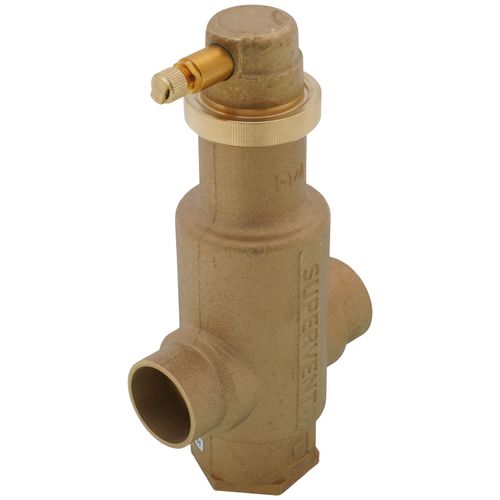

Webstone PV125S 1-1/4 inches Sweat Supervent Air Eliminator

Product Description

The WEBSTONE PV125S is a 1-1/4" Sweat Supervent Air Eliminator designed for heating systems. It effectively eliminates air from the system without bleeding, using a no-clog vent assembly that controls dirt and debris. The air eliminator features a bronze body, stainless steel concentrator, and adjustable collar ring. It has a 22 Cv capacity and can handle up to 125 psi and 240°F.

• No clog vent
• Dirt and Debris resistant
• 360 degree adjustable collar ring for installation flexibility

Product Highlights

Effectively eliminates air from heating systems with a no-clog vent and durable construction.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: PV125S

Technical Specifications

• Description: 1-1/4 in. Sweat SuperVent with 22 Cv capacity
• Application: Heating
• Connection Type: C x C
• Connection Size: 1-1/4 in. bottom inlet
• Pipe Size: 1-1/4 in.
• Maximum Safe Operating Pressure (psi): 125 psi
• Maximum Operating Temperature (F): 240 F
• Maximum Diameter: 2- 1/2 in.
• Materials: Bronze
• Size: 1-1/4"
• Connection Method: Sweat
• Material: Bronze
• Capacity: 22 Cv
• Diameter: 2-1/2" Max
• Product Type: Air Eliminator
