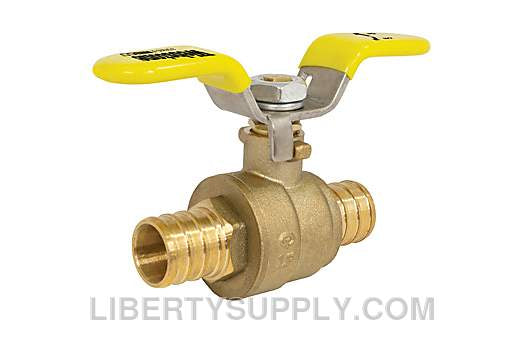

WEBSTONE PEX-3170W 1/2-Inch Full Port Ball Valve

Product Description

The WEBSTONE PEX-3170W is a full port ball valve made from forged DZR brass. This valve has a stainless steel wing-style handle and an adjustable packing gland. It is suitable for use with water, oil, and glycol mixtures in residential and commercial plumbing and heating systems. The valve meets potable water codes and has a blowout-proof stem.

• Full port forged DZR brass construction
• Equipped with a stainless steel wing-style handle
• Features an adjustable packing gland

Product Highlights

This ball valve is designed for reliability in various plumbing applications.

Product Information

Standard Information

• Manufacturer: WEBSTONE
• Part Number: PEX-3170W

Technical Specifications

• Series: H-X170
• Valve Type: Ball Valve
• Nominal Pipe Size: 1/2 inches
• End Connection Type: PEX
• Material: Forged Brass
• Material Type: DZR
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 018394016279
• Length: 3.86 inches
• Width: 2 inches
• Height: 0.95 inches
• Country of Origin: CN
• Handle Material: Stainless Steel
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Stem: Blowout-proof
• Pressure Class: 400#
• Maximum Temperature: 250
• Recommended Valve Application: Gas, Oil, Water
• ANSI: ANSI 14, ANSI 61, ANSI 372
• ASTM: ASTM F-1960
• NSF: NSF 14, NSF 61, NSF 372
• NSF Certified: Yes
• IAPMO Listed: Yes
• Lead Law Compliant: Yes
• Valve Operator: Wing Handle
• Valve Body Style: 2 piece
