Webstone H-X244WPR Tankless Water Heater Service Valve Kit 500,000 Btu/hr (3/4 inch) H-42443WPR

Product Description

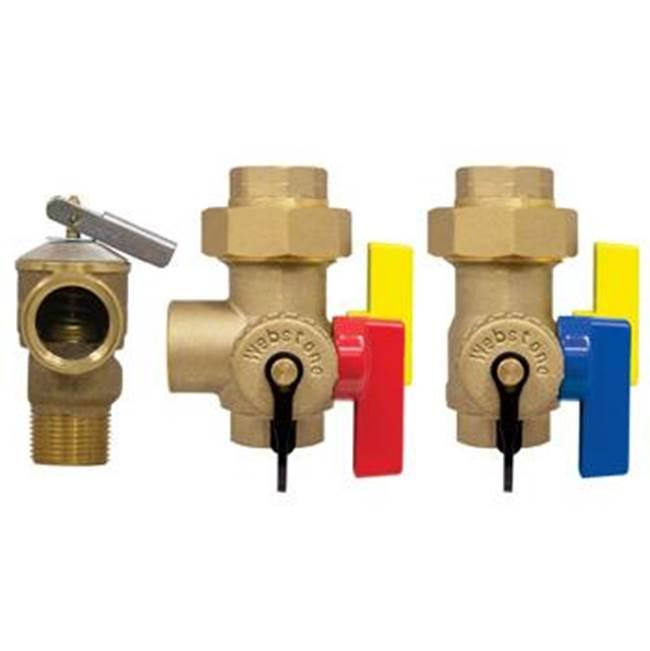

Webstone H-X244WPR is a tankless water heater service valve kit that provides hot and cold full-port forged DZR brass ball valves with 3/4 in hose drains and a pressure relief valve outlet. The compact kit installs in just under 4 in and uses 3/4 in FIP union x 3/4 in FIP connections, with a 150 psi pressure rating, 200 deg F temperature rating and 500,000 Btu/hr capacity. It includes lever handles, double O-ring stem seals and an integral spring check for reduced leak paths.

• Full-port forged DZR brass ball valves with 3/4 in hose drains and pressure relief valve outlet
• 3/4 in FIP union x 3/4 in FIP connection; 150 psi pressure rating; 200 deg F temperature rating; 500,000 Btu/hr capacity
• Compact installation (under 4 in), lever handles, double O-ring stem seals and integral spring check

Product Highlights

Compact service valve kit for tankless water heaters, wall-hung and combi boilers that enables cleaning, flushing and one-person diagnostic testing.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-X244WPR
• Country of Origin: Import

Technical Specifications

• Brand: Webstone
• Manufacturer Part Number: H-X244WPR
• Replacement Part Number: H-42443WPR
• Product Name: Tankless Water Heater Service Valve Kit
• Series: H-x244WPR Series
• For Use With: Tankless water heater; wall-hung and combi boilers
• Connection: 3/4 in FIP union x 3/4 in FIP
• Connection Size: 3/4 inch
• Connection Type: FIP Union x FIP
• Nominal Size: 3/4 inch
• Body Material: Forged DZR brass
• Pressure Rating: 150 psi
• Temperature Rating: 200 deg F
• Capacity: 500,000 Btu/hr
• Standards/Approvals: NSF/ANSI 61 & 372
• Handle Type: Lever handle
• Valve Features: Full-port ball valves; integral spring check; double O-ring stem seals; 3/4 in hose drains
• Dimensions (Height): 3.87 in
• Installation Length: Installs in just under 4 in
