Webstone H-82673W 3/4 inches FIP x Press Full Port T-Valve

Product Description

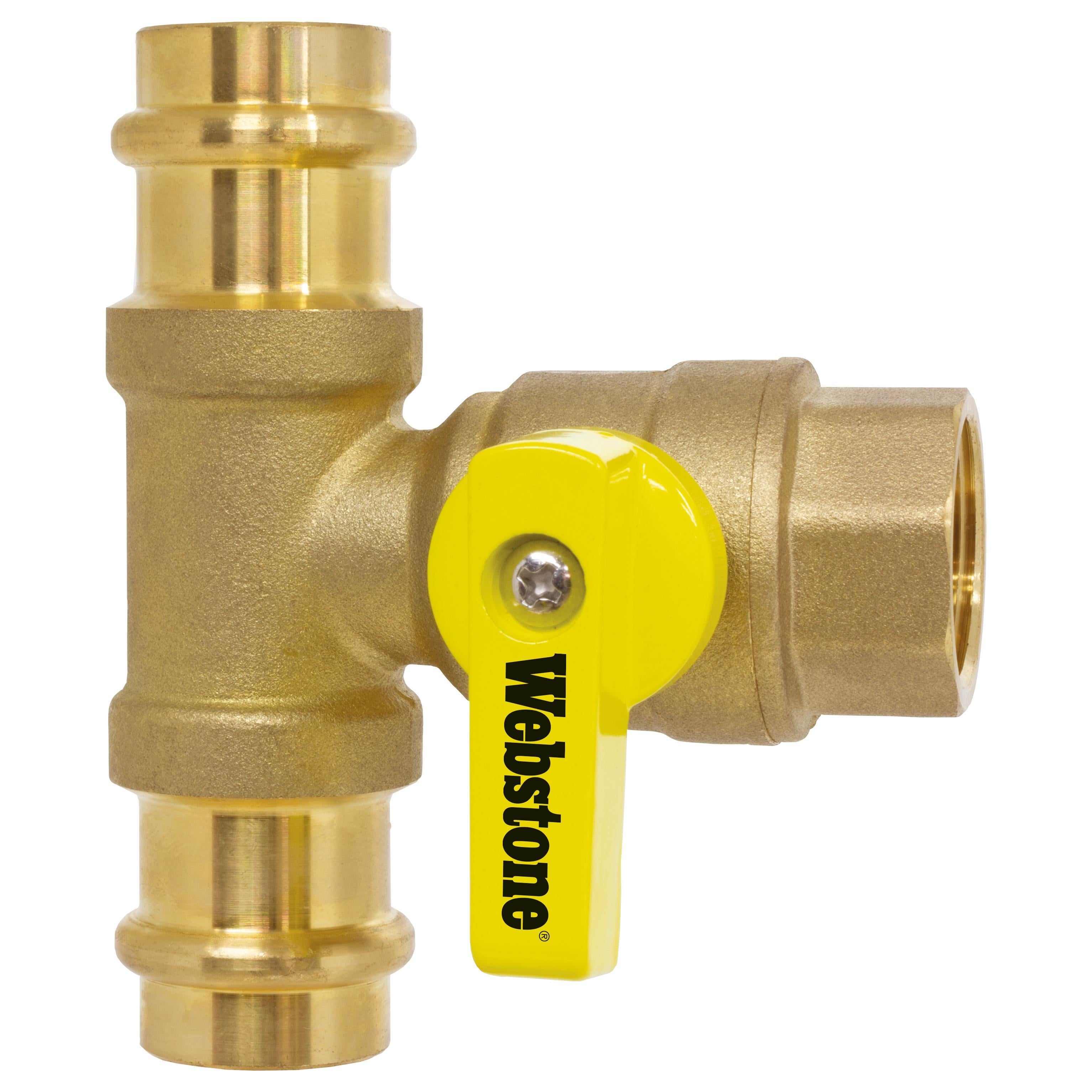

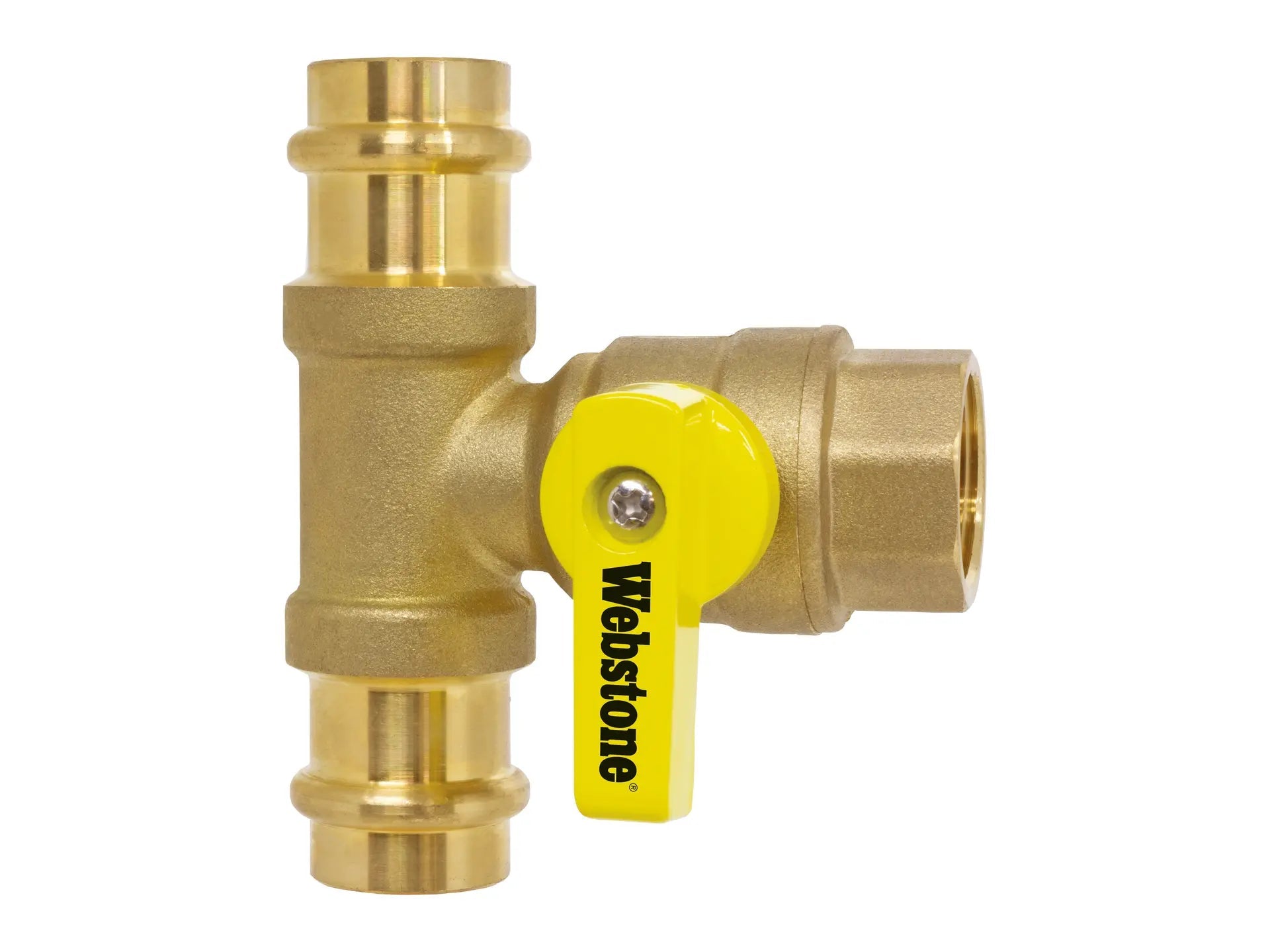

The WEBSTONE H-82673W is a 3/4" FIP x Press Full Port T-Valve, designed for efficient installation of branch or device connections in tight locations. This forged brass ball valve, with a full port design and dual stem seal, replaces a tee, nipple, and ball valve. It is suitable for residential or commercial plumbing and heating systems using water, oil, or glycol mix.

• Full Port design for optimal flow.
• Ideal for branch connections and shut-offs in tight locations.
• Replaces a tee, nipple, and ball valve, saving time and space.

Product Highlights

Forged brass T-valve for branch connections, replacing multiple components in tight spaces.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-82673W
• Country of Origin: Import

Technical Specifications

• Port Type: Full Port
• Connection Method: Threaded
• Nominal Size: 3/4" x 3/4"
• Body Material: Brass
• Lead Free: Yes
• Actuator Type: Stem
• Ball Material: Brass
• End Connection Type: FNPT Valve x Press Run
• Inlet to Outlet Length: 4.06 in
• Media: Glycol/Oil/Water
• Orifice Size: 3/4 in
• Pressure Rating: 250 psi CWP
• Series: Pro-Pal® H-x267W Series
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 250 deg F
• Top to Inlet Center: 1.74 in
• Trim Material: PTFE/Brass
• Model: PRS-X267W
• Type of Valve: Ball
• Potable Water Code: LL Compliant NSF/ANSI 372
