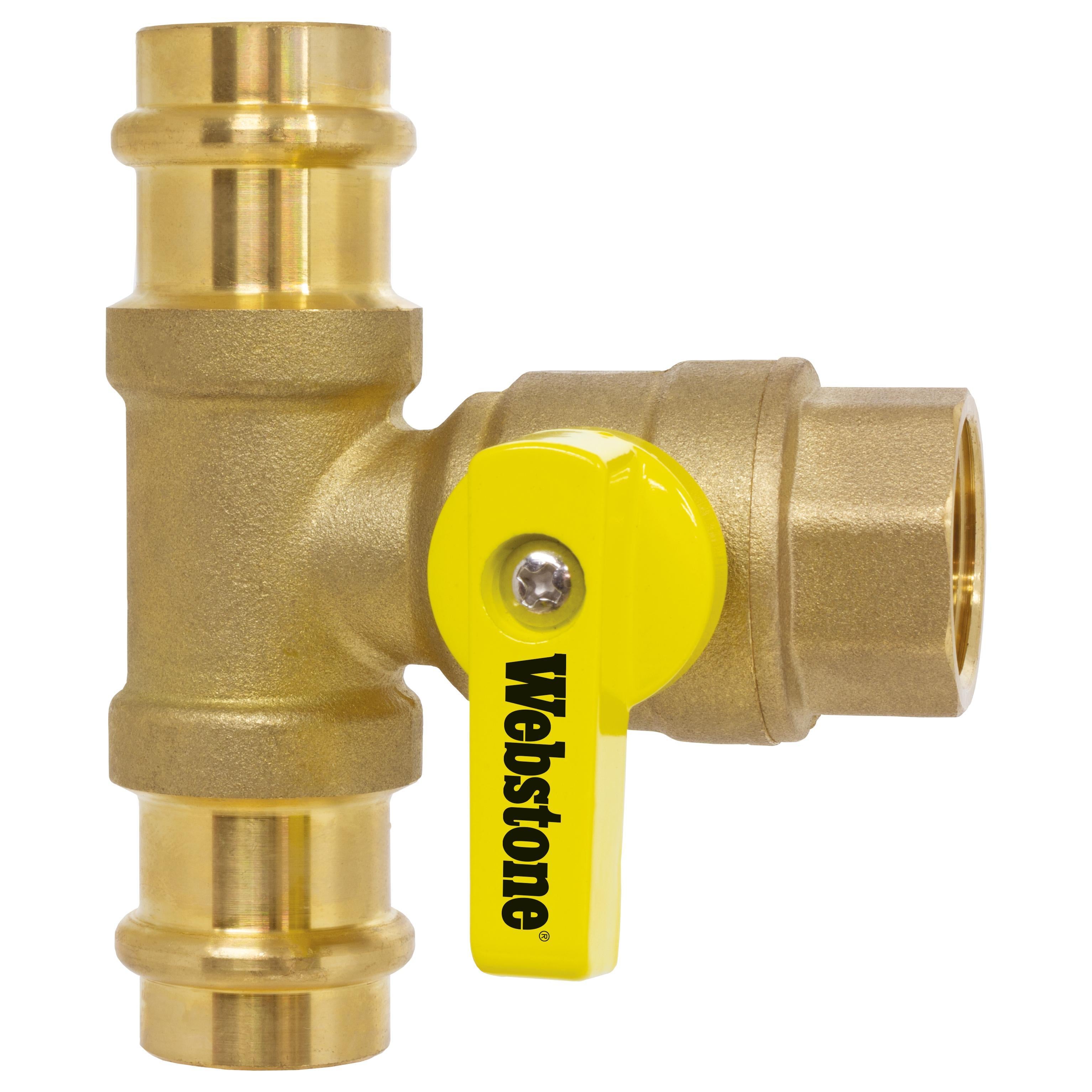

Webstone H-82672W-T34 1/2 inches FIP x 3/4 Press Run Brass Ball Valve

Product Description

The WEBSTONE H-82672W-T34 Pro-Pal T-Valve is a full port forged DZR brass ball valve designed for efficient installation and system operation. This valve features an integrated tee fitting, an adjustable packing gland, and a reversible handle, making it suitable for branch connections and shut-offs in tight locations. It is engineered to replace multiple components, streamlining plumbing and heating systems.

• Ideal for branch connections and shut-offs in tight locations.
• Features a reversible handle for installation flexibility.
• Saves 18 minutes of installation time by replacing three components.

Product Highlights

Full port forged DZR brass ball valve with integrated tee fitting, adjustable packing gland, and reversible handle for streamlined installations.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-82672W-T34
• Country of Origin: Import

Technical Specifications

• Nominal Size: 1/2" x 3/4"
• Body Material: Brass
• Connection Type: FNPT Valve x Press Run
• Lead Free: Yes
• Port Type: Full Port
• Actuator Type: Stem
• Ball Material: Brass
• Media: Glycol/Oil/Water
• Orifice Size: 1/2 in
• Pressure Rating: 250 psi CWP
• Series: Pro-Pal® H-x267W Series
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 250 deg F
• Top to Inlet Center: 1.74 in
• Trim Material: PTFE/Brass
