Webstone H-81653W-DU 3/4 inches FIP Union x Press Pro-Pal Water Heater Valve Kit (w/ Dielectric Expansion Tank Service Valve, Dielectric Union)

Product Description

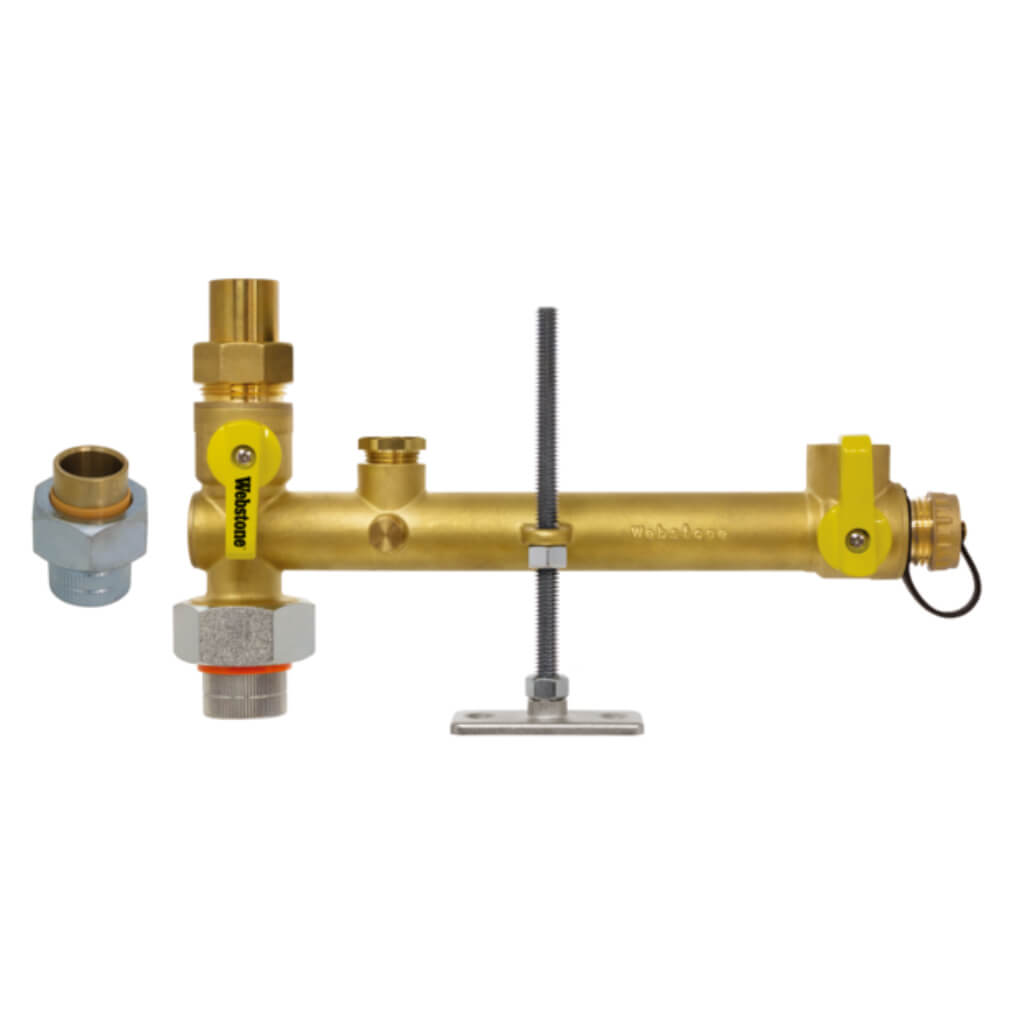

The WEBSTONE H-81653W-DU is a Pro-Pal Water Heater Service Valve Kit designed for efficient water heater installations. This kit includes a dielectric water heater supply valve with expansion tank service and a dielectric union fitting. It features a 3/4" FIP Union x Press connection type and is certified to NSF/ANSI 61 & 372, ensuring lead-free compliance. The valve is rated for a maximum temperature of 200°F and a pressure of 250 psi.

• Includes dielectric water heater supply valve with expansion tank service and dielectric union fitting.
• Certified to NSF/ANSI 61 & 372, ensuring lead-free compliance for potable water systems.
• Simplifies water heater installations by replacing multiple components and eliminating 15 leak paths.

Product Highlights

This Pro-Pal Water Heater Service Valve Kit streamlines installations, offering a lead-free, code-compliant solution with integrated dielectric components.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-81653W-DU
• Country of Origin: Import

Technical Specifications

• Nominal Size: 3/4 x 3/4 in
• Max Temperature: 200°F
• End Style: FIP Union x Press
• Pressure Rating: 250 psi
• Lead Free: Yes
• Product Type: Dielectric Union, Expansion Tank
• Ball Material: DZR Brass
• Domestic/Import: Import
• Port Type: Full
• Series: H-X165-KIT
• Type: Ball
• Application Type: Compatible with 3/4" MIP expansion tanks up to 5 gallons
• Standard Approvals: PROP65, NSF/ANSI 61,372
